Nano Base Board (C) for Raspberry Pi CM4, Onboard 8MP Camera

(No reviews yet) Write a Review

$34.95

Waveshare 23451 - Nano Base Board (C) For Raspberry Pi Compute Module 4, Same Size As The CM4, Onboard 8MP Camera - CM4-NANO-C

Specifications

CM4 socket	suitable for all variants of Compute Module 4
Connector	Raspberry Pi 40PIN GPIO header × 1
USB	USB 2.0 Type A port × 1
Display	MIPI DSI port × 1 (15pin 1.0mm FPC connector)
Camera	IMX219-D160 (8MP, 160°FOV)
Video	Mini HDMI port × 1, supports 4K 30fps output
Storage	TF card socket for Compute Module 4 Lite (without eMMC) variants
Power input	5V

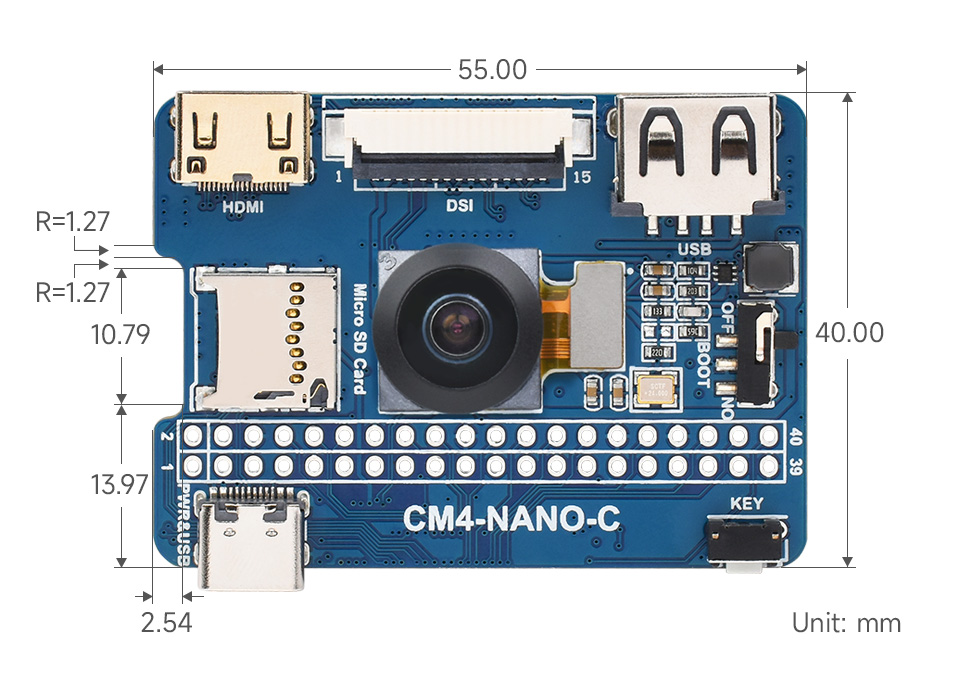

Dimensions	55.0 × 40.0mm

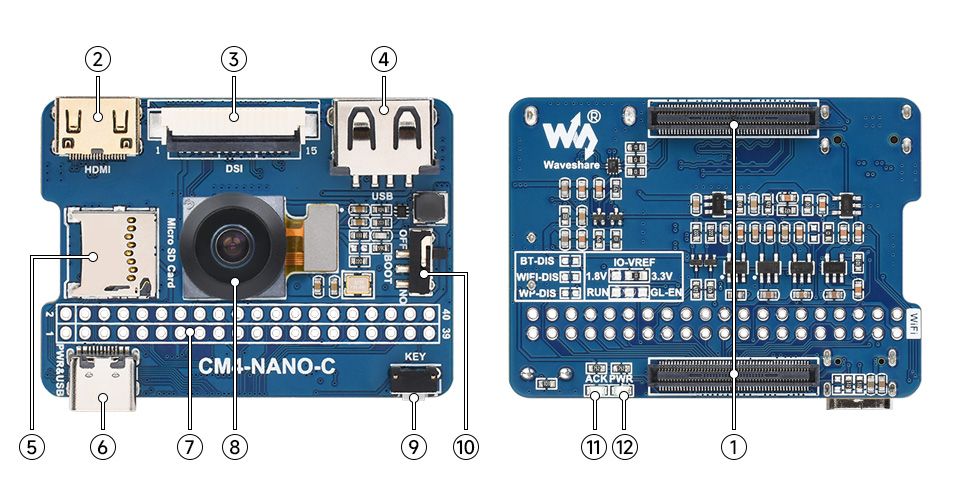

CM4 socket
suitable for all variants of Compute Module 4
Mini HDMI port
supports 4K 30fps output
DSI port
MIPI DSI display interface
USB2.0 port
for connecting sorts of USB devices
TF card slot
for connecting a TF card with pre-burnt image (Lite variant ONLY)
Power supply / Programming
5V power supply, or used for eMMC burning
40PIN GPIO header
for connecting sorts of HATs
IMX219-D160 Camera
8MP, 160° FOV
User button
Connect to GPIO21
BOOT switch
ON: Switch USB to Type C interface, will enter download mode when powered on (configured as a large-capacity disk through RPI boot)
OFF: Switch USB to Type A interface, will not enter download mode when powered on (booted from eMMC or TF card)
ACK Indicator
CM4 working status
PWR Indicator
CM4 power status

Weight: 0.002 kg

* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.
