Pi Modules - UPS PIco HV3.0B+ HAT Stack 450 PoE - PM_073

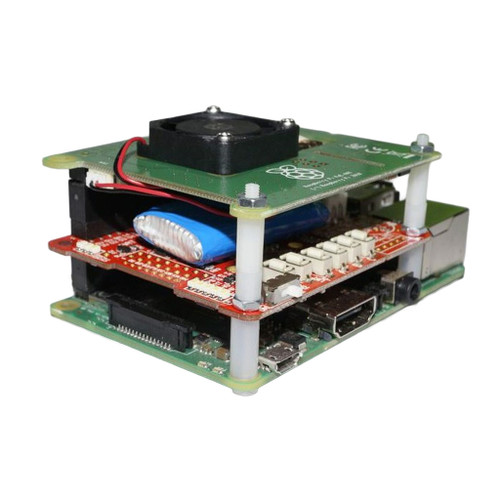

The UPS PIco HV3.0B+ HAT Stack 450 PoE is an intelligent UPS and mobile power bank designed for Raspberry Pi 3 Model B+ and fully compatible with the official Raspberry Pi PoE HAT. It provides backup power, safe shutdown, and automatic reboot after power restoration. The unit can also run independently via micro USB and includes an externally accessed slide power switch for safe ON/OFF without file corruption.

It delivers 5V/3A output on battery and includes a 450 mAh 15C LiPO battery (6.5A), upgradeable to 1500 mAh for extended runtime. Features include 3 user-programmable keys, 3 programmable LEDs, support for multiple battery chemistries, 2×3-pin bi-stable relays (DPDT 2A), 3× A/D 12-bit converters (5V–30V), built-in sensors (current, voltage, temperature), a true 5V 1-wire interface, and optional RS232.

The HAT is powered and charged through the Raspberry Pi GPIO or PoE HAT, requiring no extra cabling. Compact within the Pi footprint, it fits most cases. A 4-layer 2 oz copper PCB with thermal pipes ensures efficient heat dissipation and passive cooling.

Features

Designed for Raspberry Pi 3 Model B+
HAT compliant with standard dimensions and EEPROM
Plug and Play installation via GitHub
Interrupt-driven interaction using GPIO27 (Pin 13) & GPIO22 (Pin 15)
Optional GPIO-free operation using current consumption and I2C activity
Status email alerts when power state changes
Enhanced system monitoring and programming API
Labeled J8 GPIO pins for easy experimental cable connection
Standard THT 40-pin connector (not soldered)
Remote bootloader for live firmware updates
Local bootloader for on-site firmware updates

Content

UPS PIco HV3.0B+ HAT Stack 450
LiPO Battery 450 mAh 15C
Not Soldered 2 x 8 Pins headers for all specified below I/Os
Not Soldered 2 x Gold Plated Reset Pins
Not Soldered Electromagnetic Sounder
Not Soldered ON/OFF slide switch
PoE Extension Header (make UPS PIco compatible with Raspberry Pi PoE HAT)
Mounting Spacers, screws, and nuts

Note: This product requires soldering. The Raspberry Pi PoE HAT is NOT included and needs to be ordered separately.

Powering Options

Intelligent Uninterruptible Power Supply (UPS)
Mobile Battery Power Bank (starts-up without cable power cycling)
File Safe Shutdown and Start-up Functionality on a Single Button
Single slide ON/OFF switch for battery powered (mobile) and cable-powered applications running without power cycling (with File Safe Shutdown functionality when OFF)
Switches ON/OFF the Raspberry Pi® 3 Model B+ even if it is powered via their micro USB cable power!!
Possibility to solder external ON/OFF switch (Ready Soldering PADs)
Integrated LiPO Battery 450 mAh 15C (10-15 Minutes of Power Back-Up)
5V 2.6A Power Backup (Peak Output 5V 3A)
No Additional External Power Input Required. System is monitoring power status over 5V GPIOs, therefore is compatible with 99.99% of all existing cases
Additional programmable 5V power source with battery backup, available for user applications also when Raspberry Pi is OFF (5V@750mA) protected with PPTC FUSE and reverse current flow diode, controlled by User and RTC Scheduler.
User and RTC Scheduler controlled, 0.[email protected] protected output (sourced from independent and dedicated LDO
Direct Raspberry Pi PoE HAT

Supported Batteries Types and Capacities

Support for LiPO, LiFePO4 and Li-Ion Chemistry Batteries on the same PCB (with high current cable connection) with dedicated plastic base
Support for Li-Ion 18650 low cost batteries (from Electronic Cigarettes) with dedicated mounting base PCB screwed on top
Support for LiPO 18650 batteries with dedicated mounting base PCB screwed on top
Support for LiFePO4 18650 batteries with dedicated mounting base PCB screwed on top
Intelligent Automatic Battery Charger
Available Standard Batteries Capacities are:
- LiPO 1500 mAh

Essential extras

Infrared Receiver
High Capacity Batteries (450 mAh, 1500 mAh)
Bi-Stable (Zero Power) Latching Relay with appropriate TB
UPS PIco HV3.0A Terminals Blocks PCB
PIco FAN Kit 3.0

Designed and Manufactured in Europe

Resources

Revised Prospectus and Technical Specifications (Can be opened directly with Web Browser and Adobe Acrobat)
Latest Firmware and Manual page - Manual
