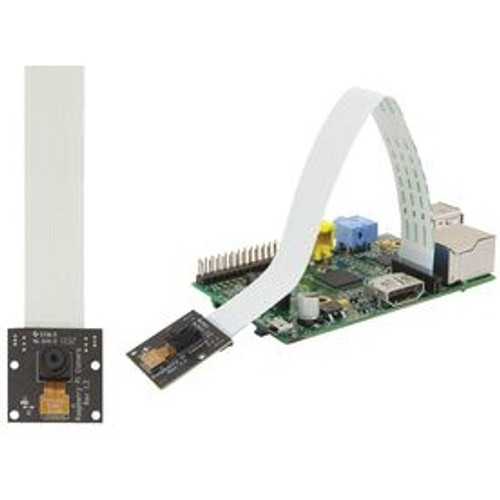

Raspberry Pi NoIR Camera Module
- SKU:
- 263
Note: This model has been superseded by Pi NoIR v2.
The Pi NoIR gives you everything the regular camera module offers, with one difference: it does not employ an infrared filter. (NoIR = No Infrared.) This means that pictures you take by daylight will look decidedly curious, but it gives you the ability to see in the dark with infrared lighting.
It comes bundled with a little square of blue gel, which you can use with the Pi NoIR to monitor the health of green plants. The Pi NoIR is very popular among wildlife hobbyists: with a few infra-red LEDs, you can monitor what nocturnal animals are doing in your garden without disturbing them.
The camera works with all models of Raspberry Pi 1,2 and 3. It can be accessed through the MMAL and V4L APIs, and there are numerous third-party libraries built for it, including the Picamera Python library.
This 5mp camera module is capable of 1080p video and still images and connects directly to your Raspberry Pi. Connect the included ribbon cable to the CSI (Camera Serial Interface) port on your Raspberry Pi, boot up the latest version of Raspbian and you are good to go!
The board itself is tiny, at around 25mm x 20mm x 9mm and weighing in at just over 3g, making it perfect for mobile or other applications where size and weight are important. The sensor has a native resolution of 5 megapixel, and has a fixed focus lens onboard. In terms of still images, the camera is capable of 2592 x 1944 pixel static images, and also supports 1080p30, 720p60 and 640x480p60/90 video.
Note: This module is only capable of taking pictures and video, not sound.
Description:
- Core Architecture: ARM
- Core Sub-Architecture: ARM1176JZF-S
- For Use With: Raspberry Pi
- Kit Contents: Raspberry Pi Noir Camera Board
- SVHC: To Be Advised
- Silicon Core Number: BCM2835
