PiKVM V3 Pre-Assembled
- Brand
- PiKVM
- SKU:
- 1300-1
- UPC:
- 605926258841
- Condition:
- New
- Maximum Purchase:
- 5 units

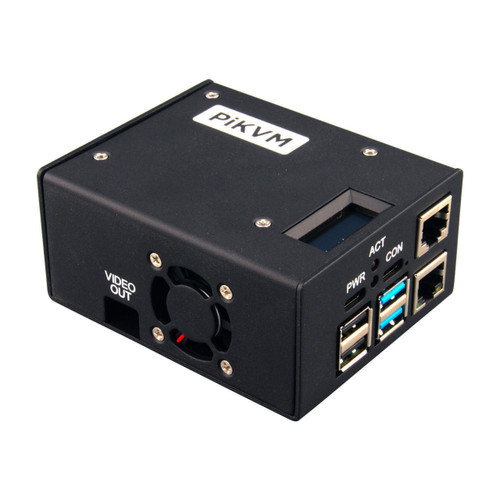

PiKVM V3 Pre-Assembled – Ready-to-Use Remote Management Solution
After the success of the PiKVM HAT, this pre-assembled V3 offered a plug-and-play remote management solution. While newer Pi-KVM models are now available, the V3 remains a cost-effective solution.
Looking for the latest PiKVM?
Check the PiKVM V4 Plus and PiKVM V4 Mini, both with faster HDMI capture, audio support, and improved design compared to the V3.
Features
- Control a computer/device using a web browser!
- Low bandwidth usage - 6Mbps for Full-HD approximately
- Full HD 1920 x 1080p 50Hz max resolution HDMI capture device with future audio support
- Mass storage emulation - Simulate a virtual flash drive or CD drive using an image file uploaded to PiKVM!
- Ability to initiate the removal and insertion of USB devices
- ATX controller - Switch the machine on or off, reset it, and monitor power & storage LED activity remotely
- Automatic variable-speed 5V PWM fan for silent operation
- USB & RJ-45 (Cisco-like) serial console for configuration and debugging
- OLED display with name, IP address, temperature, CPU load, and uptime
- Software: Linux-based, regularly updated by a dedicated team
ℹ️ Important: USB-C display input is not supported.
Technical specifications
- Includes a Raspberry Pi 4 with 2GB RAM
- Video/Resolution: 1920x1080p at 50Hz or lower
- Power: USB-C 5.1V, 3A power supply required (not included)
- Real-time clock with rechargeable Super Capacitor
- Enclosure: robust 1.6mm (1/16") steel case
- Product dimensions: 92mm x 75mm x 45mm (4"x3"x2")
- Product weight: 410 g (14.5 oz.)
- Warranty: 1 year limited
Connectors
| Front: | Back: | Side: |
| Power: USB-C | ATX Control | Video Out: micro HDMI |
| Serial Console: USB-C + RJ45 (one active at a time) |
OTG Host USB (USB-C) | |
| 2x USB 2.0, 2x USB 3.0 | HDMI Video input & output | |
| Gigabit Ethernet |
What's in the Box
- PiKVM v3.3 Pre-Assembled
- ATX adapter board with brackets and motherboard interface wiring
- A 32 GB MicroSD card pre-imaged with the PiKVM software
Essential accessories
- 5.1v 3A power supply with USB-C, Raspberry Pi compatible
- A regular HDMI cable
- USB-C to USB-A cable with DATA lines (for keyboard and mouse emulation)
- Straight Ethernet cable (NOT crossover, to connect the PiKVM and ATX board)
Resources
Videos Hide Videos Show Videos
1 Review Hide Reviews Show Reviews
-
Gets the job done but oh what a pain...
Could not get the password to work for the UI.. took a long time to figure out.
The wires connecting to the motherboard were VERY tedious to plug in and the directions were vague.
Vidoe out is too deep into the case.
Other than the above. it totally does what it is designed to do and once it is working it is a blessing. I strongly recommend using this.
