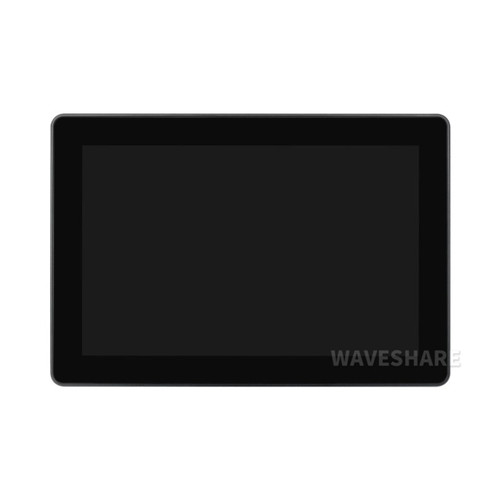

Industrial HMI All-in-one Touch Display For Raspberry Pi, 8inch, Dual 4K HDMI, 10-point Touch, Aluminum Alloy Case

Waveshare 29987 - Industrial HMI All-in-one Touch Display For Raspberry Pi, 8inch, Supports Dual 4K HDMI Output, 10-point Touch, Optical Bonding, Aluminum Alloy Case, High-efficiency Heat Dissipation - RPI-HMI-080D-ACCE (US)

Features

• 8inch DSI touch screen, ten-point capacitive touch control
• IPS display panel with hardware resolution of 1280×800
• Compatible with Raspberry Pi 5/4 all-in-one installation.
• Using optical bonding process to ensure clearer pictures and reduce light reflection
• Toughened glass capacitive touch panel, hardness up to 6H
• Dual 4Kp60 HDMI display output
• Integrated 5-megapixel front camera
• Directly drive the LCD by the DSI interface on the Raspberry Pi, with up to 60Hz refreshing rate
• Supports Bookworm system without driver when used with Raspberry Pi
• Supports software control of backlight brightness
• Aluminum alloy case with passive cooling design
• Embedded installation, compatible with VESA standard bracket installation

Technical Details

• Size: 8 inch
• Resolution: 1280×800
• Display Panel: IPS
• Viewing Angle: 178°
• Touch Type: Capacitive
• Touch Points: 10-Point
• Touch Panel: Toughened Glass
• Touch Panel Tech: Optical Bonding
• Front Camera: 5MP
• Display Interface: Dual Standard HDMI 4K Output
• Power Port: Type-C/Screw Terminal
• Enclosure: Aluminum Alloy

Interface Introduction

1. 5V Type-C power port
2. Standard HDMI Interface x 2
3. USB3.0 port x 2
4. USB2.0 port x 2
5. Gigabit Ethernet connector
6. TF card slot
7. Power button
8. Power indicator
9. 5V Power supply screw terminal (3.81mm pitch)
10. Debugging serial port

Dimensions
