HW-095A L298 Stepper Motor Driver Module, DC Dual H-Bridge
(No reviews yet)
Write a Review
- SKU:
- 735-2
- Condition:
- New

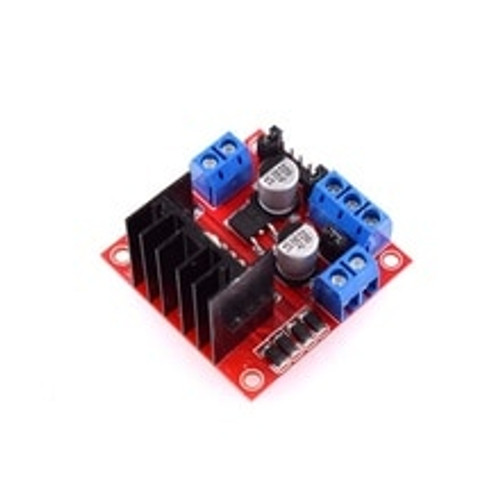

HW-095A L298 Stepper Motor Driver Module – Dual H-Bridge, 2 A per Channel
This HW-095A L298 Stepper Motor Driver Module uses ST’s dependable L298N dual H-bridge chip. Dual full-bridge design handles up to 2 A per channel with robust anti-interference, and includes a built-in 78M05 regulator for logic power when supply voltage stays under 12 V; otherwise feed 5 V logic externally. Efficient filtering, freewheeling diodes, and thermal protection make it a reliable choice for driving motors in robotics and CNC applications.
Specifications
| Working mode | Double H bridge drive (dual) |
| Main control chip | L298N |
| Logic voltage | 5V |
| Logic current | 0mA-36mA |
| Driving voltage | 5V-35V |
| Drive current | 2A (maximum single bridge) |
| Storage temperature | -20 ° C~+135 ° C |
| Weight | 30g |
| Maximum power | 25W |
| Size | 43*43*27mm |
 |
 |
