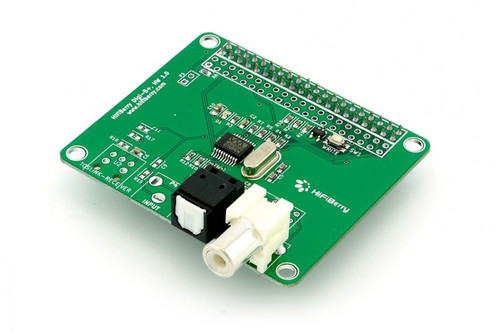

The HiFiBerry Digi+ is a high-quality S/PDIF output board for the Raspberry Pi 2 and B+. It is designed as an add-on board that connects to the main header of the Raspberry Pi
- Dedicated S/PDIF interface chip supports up to 192kHz/24bit resolution
- Optical (Toslink) and electrical outputs
- Bit-perfect output, audio data stream will not be modified in any way
- Connects directly to the Raspberry Pi, no additional cables needed
- No soldering. The Digi+ comes as a pre-fabricated kit. You just plug it onto the Raspberry Pi. The board conform to the Raspberry Pi hardware-attached-on-top (HAT) specification. That means it perfectly fits your Raspberry B+, Pi2, and Pi3
- Directly powered from the Raspberry Pi, no additional power supply
- Optional: high-bandwidth output transformer provides full galvanic isolation of the electrical output (not in the standard version)
- Integrated EEPROM for automatic configuration (with write-protection).
Note that this feature is still in development by the Raspberry Pi foundation. You will be able to upgrade your HiFiBerry DAC+ when it is officially available. The sound card already works without this feature.
- Comes with all components required to mount it. We include 4 M2.5x12mm spacers to fix the board onto the Raspberry Pi.
- Pre-soldered HifiBerry Digi+
- Nylon spacer set
Important note: While the hardware is able to output DTS/Dolby Digital, software has to be adapted to support this. We will support the developers to implement this. Unfortunately we can’t guarantee that this feature will work with a specific software. Please ask the developers of the software if this is supported.
The output transformer provides a full galvanic isolation between the Raspberry Pi and your DAC on the electrical output. Usual consumer-grade SPDIF outputs do not use output transformers. Usually this works without problems. However, many audio enthusiast like to use this option. If you’re not sure, the standard version is most likely ok for you.
The output transformer does not have any effect on the optical output. Therefore if you plan to use only the optical output, the standard version will do the job.
This version is the standard version without an output transformer
