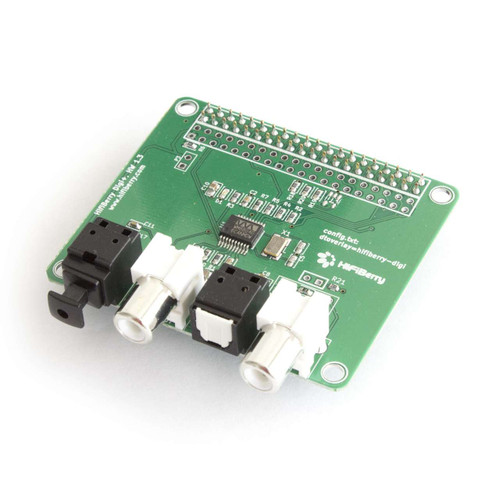

HiFiBerry DIGI+ I/O

The HiFiBerry Digi+ I/O is a high-quality SPDIF interface board for the Raspberry Pi with inputs and outputs.

Facts
•Dedicated S/PDIF interface chip supports up to 192kHz/24bit resolution
•Optical (Toslink) and electrical inputs and outputs
•Bit-perfect input and output, audio data stream will not be modified in any way
•Connects directly to the Raspberry Pi, no additional cables needed
•No soldering, comes as a pre-fabricated kit. You just plug it onto the Raspberry Pi, it conforms to the Raspberry Pi hardware-attached-on-top (HAT) specification.
•Compatible with Raspberry Pi models A+,B+, 2B and 3B
•Directly powered from the Raspberry Pi, no additional power supply
•Comes with all components required to mount it. We include 4 M2.5x12mm spacers to fix the board onto the Raspberry Pi.
Dimensions without package
5.5 x 6.5 x 2 cm
Dimensions including package
9.5 x 7.5 x 2.5 cm
Weight
0.02 kg
GTIN
4260439550453

Usage recommendations
•digital audio recording systems
•audio processing circuits
•room equalization
