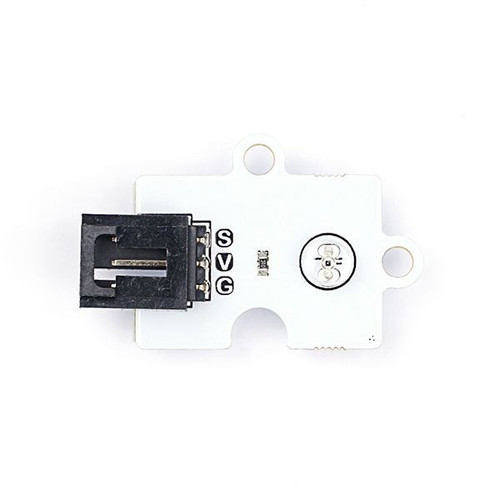

Octopus micro bit Light Sensor Brick can read the light value of the current environment.
CHARACTERISTICS
- The 3-pin ports are easy to plug and play with.
- It can work with micro:bit in 3V.
OUTLOOK & DIMENSIONS
SPECIFICATIONS
| Items | Parameters |
|---|---|
| SKU | EF04092 |
| Power Input | 3V-5.5V |
| Connector Type | Analog |
| Pins Definition | 1-Signal 2-VCC 3-GND |
| Response | Quick response with high-sensitivity |
| Circuit | Simple |
| Stability | Stable and durable |
CONNECTION DIAGRAM
