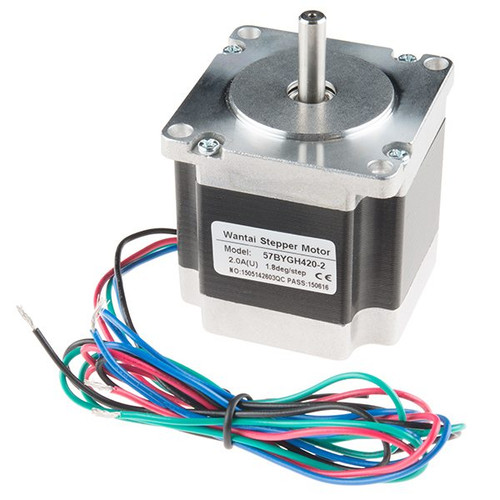

Stepper Motor – NEMA 23 – 125 oz.in (200 steps/rev)

The NEMA 23 Stepper Motor delivers 125 oz-in of holding torque with 200 steps per revolution. It offers accurate and repeatable positioning for robotics, CNC machines, and automation projects. This motor is a solid choice for makers and engineers needing reliable motion control.

These stepper motors, in particular, are used with the Shapoko CNC machine and offer 125 oz.in of torque and 200 steps per revolution. Additionally, each motor has been equipped with extra-long 600mm AWG22 wires, making them ideal for CNC applications.

Note: This is a Bipolar stepper.

Features:

• 2-Phase
• Steps per Revolution: 200
• Step Angle: 1.8°
• Voltage: 3.2V
• Current: 2.0A/Phase
• Resistance: 1.6± 10% Ω/Phase
• Inductance: 5.5± 20% mH/Phase
• Recommended Holding Torque: 125 oz.in
• NEMA 23 Form Factor
• 600mm Long AWG22 Wire

Documents:

• Datasheet
