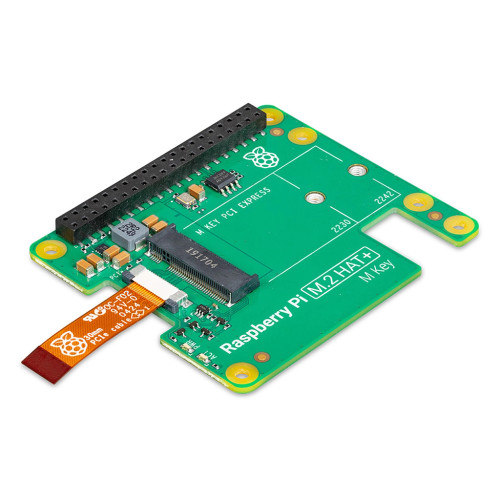

Raspberry Pi M.2 HAT for Pi 5 - SC1166
The Raspberry Pi M.2 HAT for Pi 5 lets you plug M.2 peripherals—like NVMe SSDs or AI accelerators—into the Pi 5’s PCIe interface. With the official HAT+ specifications, it comes with a ribbon cable, stacking header, spacers, screws, and a drive‑holding screw. Worth noting: it fits in the Pi 5 case only if you skip the lid.
Features
- Supports single-lane PCIe 2.0 interface(500 MB/s peak transfer rate)
- Supports devices that use the M.2 M key edge connector
- Supports devices with the 2230 or 2242 form factor
- Capable of supplying up to 3A to connected M.2 devices
- Includes power and activity LEDs
- Conforms to the Raspberry Pi HAT+ specification
- Supplied with ribbon cable, 16mm stacking header, threaded spacers and screws, and knurled double-flanged screw to secure and support the M.2 peripheral
While the M.2 HAT will fit in the official case, you won't be able to close it with the lid. Please check out our HighPi Pro 5S Case for Raspberry Pi 5, it is compatible! In either case, the Active Cooler can be installed
Specifications
- Operating temperature: 0°C to 50°C (ambient)
- Production lifetime: The Raspberry Pi M.2 HAT+ will remain in production until at least January 2032
- Compliance: For a full list of local and regional product approvals, please visit pip.raspberrypi.com
