Raspberry Pi M.2 HAT+ Compact
| Brand | Raspberry Pi |
| SKU: | 1175-1 |
| Condition: | New |
| Compatibility | Pi 5 |
Raspberry Pi M.2 HAT+ Compact - SC1771

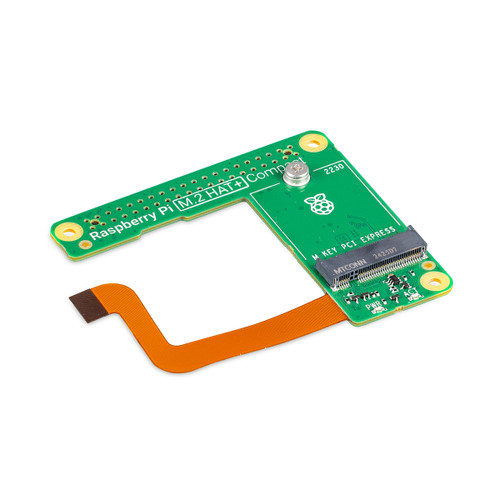

The Raspberry Pi M.2 HAT+ Compact is an alternative to the existing M.2 HAT+, designed to fit inside the Official case for Raspberry Pi 5. It connects to the PCIe FPC connector on Raspberry Pi 5 via a “flex/rigid” FPC built into the HAT+ PCB. removing the need for a separate FPC cable.
Features
- 4 Gbits/s PCIe 2.0 interface provides fast (~450Mbytes/s) data transfer to and from NVMe SSD drives and other PCIe accessories.
- Conforms to the HAT+ specification.
- Automatically detected by the latest Raspberry Pi software/firmware.
- Supplied with 3 pcs 8mm M2.5 nylon spacers and 6 pcs M2.5 nylon screws to enable the M.2 HAT+ to be fitted to a Raspberry Pi 5 before fitting it into the Raspberry Pi Case.
Specifications
- Supports single-lane PCIe 2.0 interface (500 MB/s peak transfer rate)
- Supports devices that use the M.2 M key edge connector
- Supports form factors: M.2 HAT+ Compact: 2230 only
- Capable of supplying up to 3A to connected M.2 devices
- Includes power and activity LEDs
- Conforms to the Raspberry Pi HAT+ specification
- Supplied with ribbon cable, 16mm stacking header (M.2 HAT+ only), threaded spacers and screws, and knurled double-flanged screw to secure and support the M.2 peripheral
