Raspberry Pi Dual-Band 5GHz/2.4GHZ USB WiFi Adapter with Antenna
- SKU:
- 16-1
- Condition:
- New

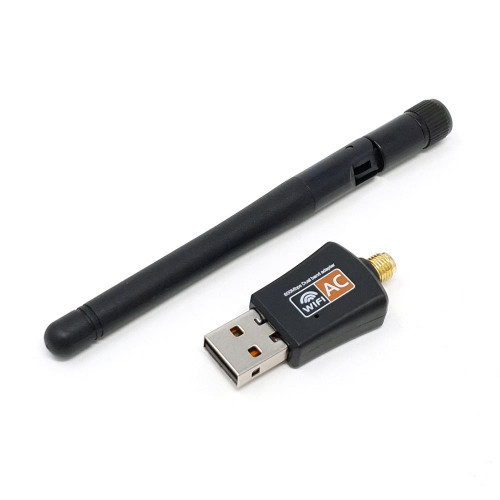

Raspberry Pi Dual-Band 5GHz / 2.4GHz USB Wi-Fi Adapter with Antenna
If the on-board Wi-Fi on your Raspberry Pi isn't giving you enough range, this dual-band 2.4GHz/5GHz USB 2.0 Wi-Fi adapter is a solid upgrade.
The antenna supports both 2.4GHz and 5GHz networks, along with the 802.11ac standard (up to 3× faster than 802.11n).
Installation
Driver install takes about 5 minutes. See the installation guide.
- Raspberry Pi OS 32-bit Bookworm tested (Add
arm_64bit=0
toconfig.txt
) - Raspberry Pi OS 64-bit Bookworm tested
Tested and approved with Raspberry Pi 3B+, Pi 4 / Pi 400, and Pi 5 by the PiShop Team!
Features
- Up to 150 Mbps at 2.4GHz and 433 Mbps at 5GHz
- External high-gain, adjustable, detachable antenna for wide coverage
- Backward compatible with 802.11a/b/g/n
- LED status light
Tech Specs
- Chipset: Realtek RTL8811CU
- Interface: USB 2.0
- Wireless transmit power: 20 dBm
- Network speed: up to 600 Mbps (max)
- Network mode: Dual-band
- Operating systems: Windows Vista/XP/2000/7/8/10, Linux, macOS
- USB adapter size: 4.5 × 2 × 1.2 cm
- RP-SMA antenna length: 10.8 cm
- Net weight: 12 g
Package Includes
- 1 × Dual-band 2.4G/5G USB Wi-Fi adapter
- 1 × Antenna
- 1 × Driver CD
Note: Raspberry Pi not included.
Resources
- Raspberry Pi documentation — The Linux kernel
- Raspberry Pi forum — “After apt upgrade my 32-bit OS runs on a 64-bit kernel and now I can't compile an external module.”
- Raspberry Pi forum — Kernel source for 5.15.61-v8+
- GitHub issue — raspberrypi-kernel-headers 32-bit lacks ARMv8 support
2 Reviews Hide Reviews Show Reviews
-
works find on Pi4B with bookworm
Was not getting enough range with built-in wifi so tried this. It adds at least 5 db to signal so it helps. Installed driver per instructions with no issues. Also turned off built-in wifi by editing /boot/firmware/config.txt to add a new line "dtoverlay=disable-wifi" at the end of the file. After one final reboot the new dongle was on wlan0 and everything worked as before.
-
Works well with R-PI
I didn't think of looking here for installation instructions (I forgot where I ordered it) and ended up installing pre-compiled drivers using a script found here, http://downloads.fars-robotics.net/wifi-drivers/install-wifi, and following instructions found here, https://raspberrypi.stackexchange.com/a/75108/19002 and https://www.raspberrypi.org/forums/viewtopic.php?t=194859 . The installation script automatically found the Realtek vendor:device ID of 0bda:c811, and installed a 8821cu driver for the appropriate version of Raspian.
