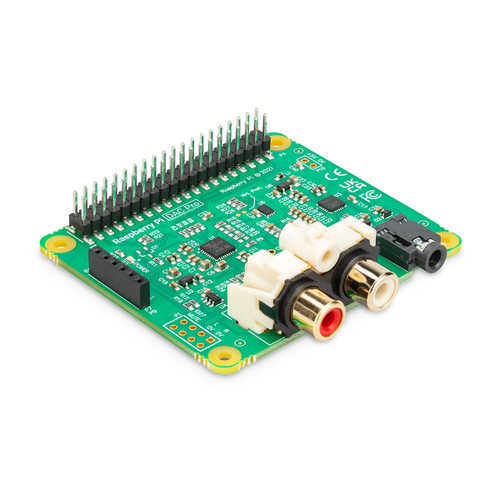

Raspberry Pi DAC Pro, Green PCB - SC2077 - Previously known as IQaudio DAC Pro
The Raspberry Pi DAC Pro is our highest-fidelity audio HAT, and is compatible with any Raspberry Pi computer that has a 40-pin GPIO header. With the Texas Instruments PCM5242, the DAC Pro provides an outstanding signal-to-noise ratio (SNR) and supports balanced/differential output in parallel to phono/RCA line-level output. It also includes a dedicated headphone amplifier. Previously known as IQaudio DAC Pro.
Two enclosures are compatible with this HAT:
HighPi Pro Case for IQAudio DAC+ and Raspberry Pi 3 for Raspberry Pi 3
HighPi Pro Case for IQAudio DAC+ and Raspberry Pi 4 for Raspberry Pi 4
Specifications
Check out audio boards documentation for help selecting and using Raspberry Pi audio boards.
The Raspberry Pi DAC Pro is compatible with any Raspberry Pi computer that has a 40-pin GPIO header.
Form factor: 58 mm × 65 mm
Performance: Full high definition 24-bit 192kHz Texas Instruments PCM5242 digital audio codec (DAC)
Input power: Supplied by Raspberry Pi through the 40-pin GPIO header. No external power source required
Features:
- Power LED
- Analogue out (0–2V RMS via P7)
- Dedicated headphone amplifier, output via 3.5mm
- panel-mounted barrel socket
- Panel-mounted stereo phono (RCA) socket output
- 40-pin pass-through GPIO header
- HAT EEPROM write-enabled
Operating temperature: 0°C–50°C
Documents
Compliance
Raspberry Pi DAC Pro has undergone extensive compliance testing and meets the standards required in many countries. You can find all compliance information and regional certificates at pip.raspberrypi.com.
