Raspberry Pi 5/16GB

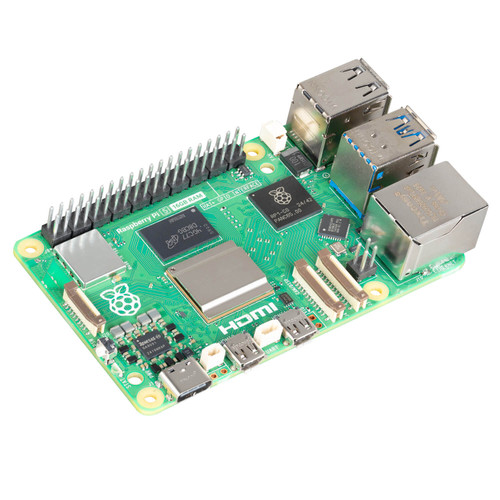

Raspberry Pi 5 16GB - SC1113 - The everything computer. Now with 16GB!

The Raspberry Pi 5 16GB packs a quad-core 2.4 GHz ARM Cortex-A76 CPU and VideoCore VII GPU for up to dual 4Kp60 output. A first-ever PCIe 2.0 x1 interface, doubled USB and SD bandwidth, and re-engineered MIPI lanes unlock faster storage, displays, and cameras.

Powered by the RP1 southbridge, it runs smoother as both a desktop replacement and an embedded controller. Now with redesigned camera and display connectors for higher bandwidth, the Raspberry Pi 5 16GB is engineered for next-gen projects in media, AI, and control systems.

Key Upgrades

• Quad-core 2.4 GHz Arm Cortex-A76 CPU - up to 3× faster than Pi 4
• 800 MHz VideoCore VII GPU - dual 4Kp60 HDMI output
• New image signal processor - sharper camera performance
• RP1 I/O controller - USB 3.2, doubled SD speeds (SDR104)
• High-bandwidth MIPI lanes - supports two cameras or two displays
• PCIe 2.0 lane - expand with high-speed peripherals

Specifications

• Broadcom BCM2712 2.4GHz quad-core 64-bit Arm Cortex-A76 CPU, with cryptography extensions, 512KB per-core L2 caches and a 2MB shared L3 cache
• VideoCore VII GPU, supporting OpenGL ES 3.1, Vulkan 1.2
• Dual 4Kp60 HDMI® display output with HDR support
• 4Kp60 HEVC decoder
• LPDDR4X-4267 SDRAM 16GB
• Dual-band 802.11ac Wi-Fi®
• Bluetooth 5.0 / Bluetooth Low Energy (BLE)
• microSD card slot, with support for high-speed SDR104 mode
• 2 × USB 3.0 ports, supporting simultaneous 5Gbps operation
• 2 × USB 2.0 ports
• Gigabit Ethernet, with PoE+ support (requires separate PoE+ HAT)
• 2 × 4-lane MIPI camera/display transceivers
• PCIe 2.0 x1 interface for fast peripherals (requires separate M.2 HAT or other adapter)
• 5V/5A DC power via USB-C, with Power Delivery support
• Raspberry Pi standard 40-pin header
• Real-time clock (RTC), powered from external battery
• Power button

Resources

• Raspberry Pi 5 product brief
• Raspberry Pi 5 mechanical drawing
• Getting started documentation
• RP1 peripherals documentation

FAQ

Will older versions of Raspberry Pi OS work with Raspberry Pi 5?
You will need the latest version of Raspberry Pi OS, Bookworm, for your Raspberry Pi 5.

Will my Raspberry Pi 4 power supply work with Raspberry Pi 5?
Raspberry Pi 5 is a higher-performance computer than Raspberry Pi 4, and you may have problems using an underpowered supply. We recommend a high-quality 5V 5A USB-C power supply.

Will my Raspberry Pi 5 fit my Raspberry Pi 4 case?
Raspberry Pi 5 won't fit the Raspberry Pi 4 Case. We recommend a Raspberry Pi Case for Raspberry Pi 5, designed to help you get the most out of our newest computer.

Does Raspberry Pi 5 need active cooling?
Raspberry Pi 5 is faster and more powerful than prior-generation Raspberry Pis, and like most general-purpose computers, it will perform best with active cooling. The Raspberry Pi Case for Raspberry Pi 5, with its integrated fan, is one way to provide this.
