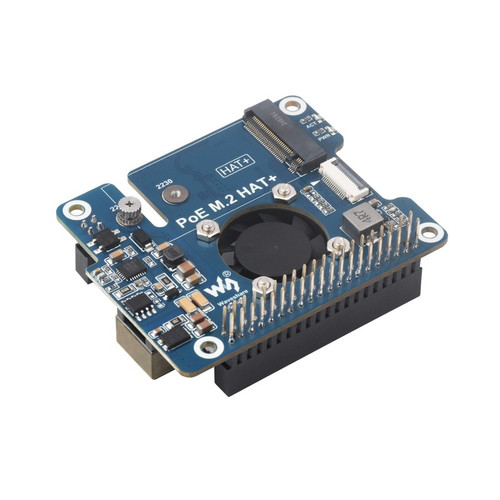

PCIe To M.2 Adapter With PoE For Raspberry Pi 5, Compatible w/ NVMe M.2 SSD
(No reviews yet)
Write a Review
- Brand
- Waveshare
- SKU:
- 915-1
- Condition:
- New
- Compatibility:
- Pi 5
Waveshare 28411 - PCIe To M.2 Adapter With PoE Function For Raspberry Pi 5, NVMe M.2 Solid State Drive, 802.3af/At - POE M.2 HAT+
This PCIe To M.2 Adapter with PoE for Raspberry Pi 5 slots directly onto your Pi 5 using the HAT+ standard. It combines high-speed NVMe storage with power-over-Ethernet in one board. Ideal for high-speed, rack-ready Pi projects, and lets you stack other HATs without losing functionality.
Feature
- PCIe To M.2 With PoE HAT
- Designed For Raspberry Pi 5, Supports IEEE 802.3af/at Network Standard
- Adapter For NVMe Protocol M.2 Solid State Drive, High-Speed Reading/Writing
- Complies with HAT+ standard
- Supports automatic detection of Raspberry Pi software/firmware
What is HAT+?
- Based on the original HAT standard, the HAT+ is a new standard introduced by Raspberry Pi.
- Compatible with the Raspberry Pi 40PIN GPIO, plug-and-play.
- Integrates an EEPROM chip for automatic board configuration loading, simplifying the development process.
- Features standardized dimensions for a perfect fit with Raspberry Pi.
- Supports power supply through the Raspberry Pi 40PIN GPIO.
Features
- Improves Reading/Writing Speed Of Your Pi
- NVMe Drive Slot Support
- Connecting To PI5 Via 16PIN Cable
- Based On 16PIN PCIe Interface Of Raspberry Pi 5.
- Standard Raspberry Pi 40PIN GPIO Stackable Header, Allows Connecting Other HATs
- Onboard Dual LED Indicators
- Easy To Monitor The Working Status
- NVMe Drive Protocol Support
- Compatible With 2230/2242 Size M.2 Solid State Drive
- Supports Gen2 And Gen3 Modes, Supports Booting PI5 From Solid State Drive
- Power Over Ethernet
- Providing Both Network Connection And Power Supply For Your Raspberry Pi In One Cable
- Onboard 5V & 12V Header Outputs
- 5V Header Provides Up To 4.5A Output (MAX 25W For 12V+5V Total Output Power)
- Be Able To Power Extra Devices While Providing Stable Power To Raspberry Pi
- Active Cooling Fan
- Accelerate Cooling Effect, More Stable Performance
Specifications
PoE power input
|
37V ~ 57V DC in
|
|---|---|
Power output
|
GPIO header: 5V 4.5A (MAX)
2P header: 12V 2A (MAX)
|
Dimensions
|
56.5 × 70.0mm
|
Network standard
|
IEEE 802.3af/at PoE
|
Includes
- PoE M.2 HAT+ x1
- Metal heatsink x1
- 16P-Cable-40mm x1
- Thermal tape (3PCS) x1
- Screws pack x1
How To Install
Attach The Thermal Tapes First, Then Install The Metal Heatsink And Fix The HAT

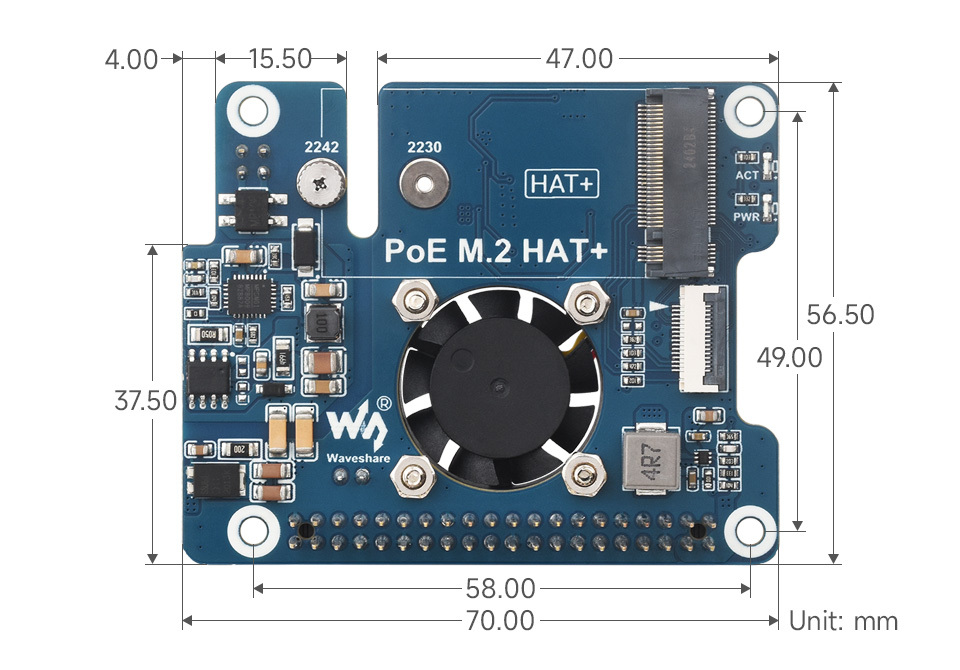

Outline Dimensions
