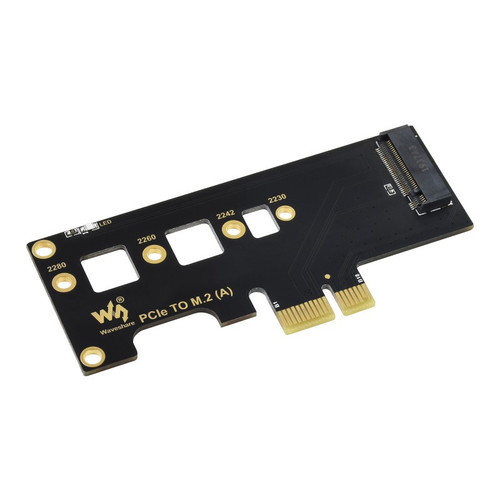

PCIe TO M.2 Adapter, for Raspberry Pi Compute Module 4

Waveshare 19091 - PCIe TO M.2 Adapter, for Raspberry Pi Compute Module 4 - PCIe TO M.2 (A)

The Waveshare PCIe to M.2 adapter is designed for the Raspberry Pi Compute Module 4, enabling fast NVMe SSD storage via the CM4’s PCIe interface. It offers an easy way to expand storage capacity and speed on CM4 IO boards or custom carrier boards

Features

• Adapter For NVMe Protocol M.2 SSD, Faster Reading/Writing, Improving Efficiency
• Supports Raspberry Pi Compute Module 4
• PCI-E Common Use (Supports Base Boards With PCI-E×1 / ×4 / ×8 / ×16 Socket, Supports CM4)
• Boosting Drive Performance
• Faster Reading/Writing
• Compatible With Different Sizes Of M.2 SSD
• Immersion Gold Process
• Onboard Operating Indicator (The LED Lights Up When Power-On, And Keeps Blinking While Reading/Writing)

Includes

1. PCIe-TO-M.2-A x1
2. Screws pack x1

Weight: 0.013 kg

Faster Reading/Writing

Faster Reading/Writing Speed Than HDD, Greatly Boosting Drive Performance

* The data above comes from Waveshare testing, for reference only.

NVMe Drive Protocol Support

Outline Dimensions

Resources

• Wiki: PCIe_TO_M.2_(A)
