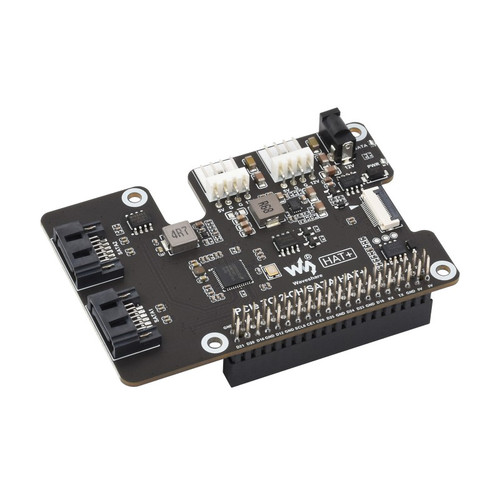

PCIe To 2-Ch SATA HAT+ for Raspberry Pi 5, SATA Compatible, Onboard EEPROM & LED Indicators, Plug And Play
- Brand
- Waveshare
- SKU:
- 1655-1
- Condition:
- New
- Compatibility:
- Pi 5

Waveshare 31882 - PCIe To 2-Ch SATA Adapter For Raspberry Pi 5, Supports SATA Hard Drive, Onboard Dual LED Indicators And EEPROM, HAT + Standard, Plug And Play - PCIe TO 2-CH SATA HAT+
The PCIe TO 2-CH SATA HAT+ adds two SATA 3.0 (6 Gbps) drives to your Raspberry Pi 5 using its 16-pin PCIe interface. It’s driver-free and delivers the convenience of dual LED indicators plus onboard EEPROM storage of HAT-ID info. Ideal for DIY NAS builds or media server projects.
Features
- Plug‑and‑play HAT for Raspberry Pi 5 with 16‑pin PCIe FFC interface — no drivers needed on recent Pi OS
- Two SATA 3.0 ports (6 Gbps each), via PCIe Gen3×1 interface, supporting standard SATA hard drives (2.5″ and 3.5″)
- Supports power‑saving modes (L0s / L1), AHCI Spec 1.2, and Native Command Queuing (NCQ) for efficient storage access
- Dual LED indicators to show drive activity and status
- Onboard EEPROM that stores HAT ID and product information
- Flexible power options: supports both 12 V and 5 V SATA power inputs via a 4‑pin JST XH connector or barrel jack
Installation on Pi 5 via 16PIN Cable.
Outline dimensions
Wiki: www.waveshare.com/wiki/PCIe_TO_2-CH_SATA_HAT+
Package content
- PCIe TO 2-CH SATA HAT+ × 1
- SATA Adapter Cable × 2
- 16PIN PCIe cable × 1
- Screws pack × 1
