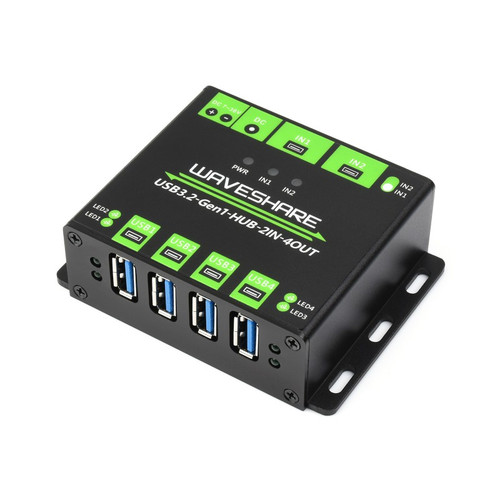

Industrial USB HUB, 4x USB 3.2 Ports, Switchable Dual Host, ESD & Surge Protection

Waveshare 23929 - Industrial grade USB HUB, Extending 4x USB 3.2 Ports, Switchable dual hosts, Multi Protections

Features

• 4x extended USB ports, switchable two inputs, sharing USB devices for two hosts
• Industrial grade HUB chip, adopting MTT technology, allows stable and smooth 4x concurrent USB connections
• ESD protection for each USB port, preventing electric surge damage and data loss
• Over-voltage protection, effectively preventing other high voltage power input from damaging the connected devices
• Multiple protection circuits: over-voltage, over-current, short circuit, over-temperature, reverse current, under voltage lock-out, 8KV ESD protection, etc.
• Industrial grade metal case, rugged & durable, with mounting holes for easy installation

Specifications

• Standard: high speed USB 3.2 Gen 1
• Data rate: up to 5Gbps
• USB output: 5V@Imax:1.2A, USB-A connector
• USB HUB input: 5V, switchable dual USB-A connectors (standalone power supply, no crossed power)
• External power: DC power supply terminal 7~36V
  (Additional power supply is required for this HUB when connecting to high power devices)
• Operating environment: -10℃ ~ 85℃
• OS support: Mac OS (8.6 or above), Linux(2.4.20 or above), Windows 11 / 10 / 8.1 / 8 / 7 / XP

Interface introduction

dimensions

Package Content

1. USB3.2-Gen1-HUB-2IN-4OUT x1
2. Dual plug USB3.0 cable x2

Wiki: www.waveshare.com/wiki/USB3.2-Gen1-HUB-2IN-4OUT
