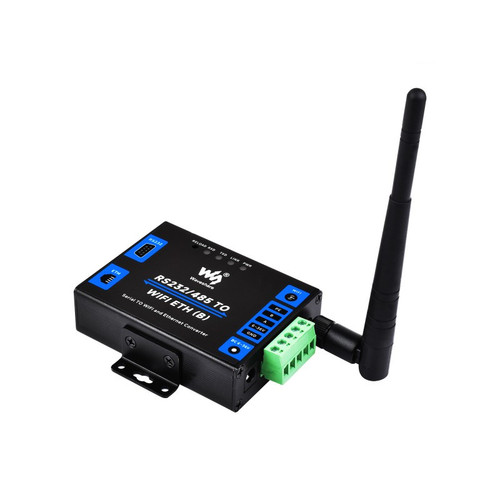

Industrial Grade Serial Server RS232/485 To WiFi and Ethernet, Modbus Gateway, MQTT Gateway, Metal Case

Waveshare 25222 - Industrial Grade Serial Server RS232/485 To WiFi And Ethernet, Modbus Gateway, MQTT Gateway, Metal Case, Wall-Mount And Rail-Mount - RS232/485 TO WIFI ETH (B)

The Waveshare 25222 RS232/RS485 to WiFi & Ethernet Converter provides a fast, reliable way to connect serial devices to modern networks. With dual RS232/RS485 support, wireless and wired connectivity, and easy configuration, it’s ideal for industrial automation, IoT projects, and remote device management.

Features

This is an RS232/485 device data acquisitor / IoT gateway designed for an industrial environment. It combines multiple functions in one, including a serial server, a Modbus gateway, an MQTT gateway, and a serial port to HTTPD Client, etc. With RS232, RS485, WIFI, and Ethernet interfaces, the module can realize functions such as serial port to WIFI, serial port to Ethernet, Ethernet to WIFI, and so on. Onboard multiple power supply interfaces, supports 6~36V wide range power supply. Industrial-grade metal case design, supports wall-mount and rail-mount installations, small in size, and easy to install. It is suitable for applications like data acquisition, IoT gateway, safety & security IoT, and intelligent instrument monitoring.

Function Block Diagram

Includes

• RS232/485 TO WIFI ETH (B) x1
• 2.4G WiFi antenna x1
• Rail-mount buckle x1
• Screwdriver x1
• Screws pack x1

Interface Introduction

Outline Dimensions

Resources

• Wiki: www.waveshare.com/wiki/RS232/485_TO_WIFI_ETH_(B)
