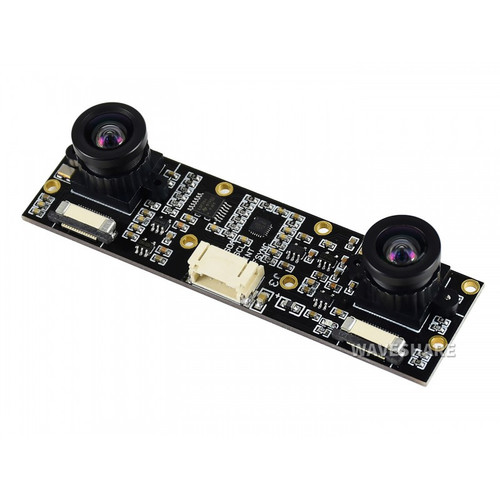

IMX219-83 Stereo Camera, 8MP Binocular Camera Module, Depth Vision

Waveshare 17742 - Binocular Camera Module, Dual IMX219, 8 Megapixels, Stereo Vision, Depth Vision - IMX219-83 Stereo Camera

The IMX219-83 Stereo Camera Module features dual 8MP Sony sensors with a 60 mm baseline for accurate depth vision. Its wide 83° field of view and onboard ICM20948 IMU enable stereo imaging with motion tracking. Fully compatible with Raspberry Pi 5, CM3/CM4, and NVIDIA Jetson Nano/Xavier NX/Orin, it’s a solid choice for robotics, mapping, and 3D vision projects.

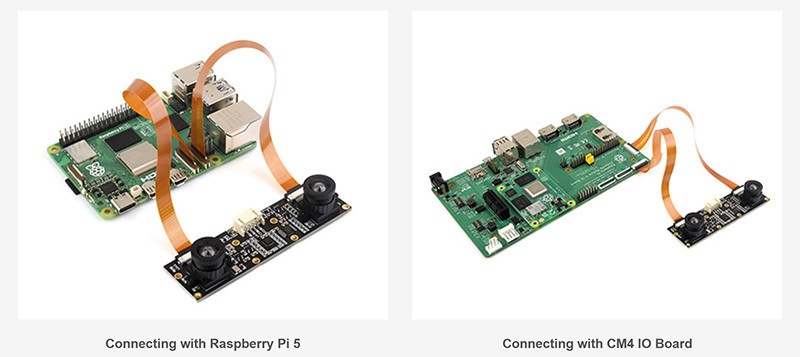

Compatibility

• Raspberry Pi 5
• Raspberry Pi CM4 and CM3/CM3+

Specifications

• 8 Megapixels
• Sensor: Sony IMX219
• Resolution: 3280 × 2464 (per camera)
• Lens specifications:
  • CMOS size: 1/4inch
  • Focal Length: 2.6mm
  • Angle of View: 83/73/50 degree (diagonal/horizontal/vertical)
  • Distortion: <1%
  • Baseline Length: 60mm
• ICM20948:
  • Accelerometer:
    • Resolution: 16-bit
    • Measuring Range (configurable): ±2, ±4, ±8, ±16g
    • Operating Current: 68.9uA
  • Gyroscope:
    • Resolution: 16-bit
    • Measuring Range (configurable): ±250, ±500, ±1000, ±2000°/sec
    • Operating Current: 1.23mA
  • Magnetometer:
    • Resolution: 16-bit
    • Measuring Range: ±4900μT
    • Operating Current: 90uA
• Dimension: 24mm × 85mm

Development Resources

Wiki: www.waveshare.com/wiki/IMX219-83_Stereo_Camera

Content

1. IMX219-83 Stereo Camera x1
2. FPC 15pin 2PCS x1
3. FPC 15pin to 20pin 2PCS x1
4. PH2.0 4PIN wire x1
