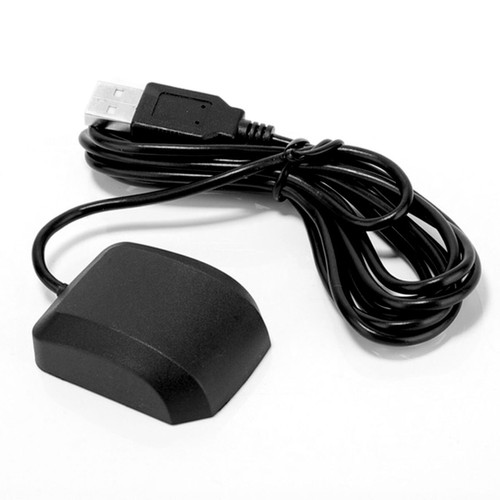

VK-162 USB GPS Navigation Module

The VK-162 GPS Receiver is a low-cost high-sensitivity GPS Receiver + Internal Antenna with USB connector. It is a standalone GPS receiver providing a solution with high position and speed accuracy performances as well as high sensitivity and tracking capabilities in urban conditions.
It is compatible with Raspberry Pi and Plug'n'Play with Stratux! It's also known as the G-Mouse USB GPS dongle.

Features

• Built in Ublox G6010 / G7020 Low power consumption GPS chipset.
• 50 channel GPS L1 frequency C/A Code.
• Superior sensitivity up to -162dBm.
• Built-in WAAS/EGNOS/MSAS Demodulator without any additional hardware.
• Low power consumption.
• Waterproof design.
• USB interface with a 2m long cable.
• Magnetic Fix

Specifications

• Tracking sensitivity: -160dBm
• Acquisition sensitivity: -146dBm
• Cold start time: 32s [average]
• Warm start time: 32s [average]
• Hot start time: 1s [average]
• Recapture Time: 0.1s [average]
