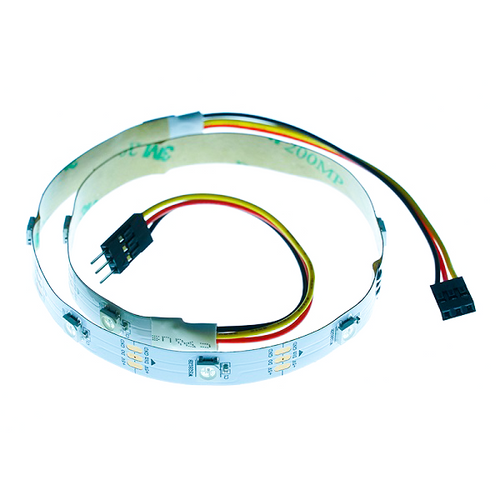

Elecfreaks Neopixel Rainbow LED Strip & GVS Conector (10 LEDs)
| Brand | ElecFreaks |
| SKU: | 441-2 |
| Condition: | New |
This is a colorful strip based on WS2812B beads, it can display the color RGB and support multiple cascades at the same time.
Characteristics
- Standard 3-pin GVS ports are easy to plug.
- Both ends are equipped with a connector and it supports multiple cascades.
- It can drive the micro:bit in 3.3V.
Specifications
| Item | Parameter |
| SKU | EF04098 |
| Working Voltage | DC 3.0V |
| Power Supply | 3V~5V |
| Connector Type | Analog |
| Number of beads | 10 pcs |
| Pins Definition | 1-Signal 2-VCC 3-GND |
| Response | Quick to response and high sensitivity |
| Circuit | Simple drive circuit |
| Stability | Stable and durable |
Outlook & Dimensions
Connection Diagram
Connect to the P1 port of the extension board.
Reference
This is a colorful strip based on WS2812B beads, it can display the color RGB and support multiple cascades at the same time.
CharacteristicsStandard 3-pin GVS ports are easy to plug.Both ends are equipped with a connector and it supports multiple cascades.It can drive the micro:bit in 3.3V.SpecificationsItemParameterSKUEF04098Working VoltageDC 3.0VPower Supply3V~5VConnector TypeAnalogNumber of beads10 pcsPins Definition1-Signal 2-VCC 3-GNDResponseQuick to response and high sensitivityCircuitSimple drive circuitStabilityStable and durableOutlook & Dimensions441-2-1.jpg
Connection DiagramConnect to the P1 port of the extension board.
ReferenceLinks: https://makecode.microbit.org/_bfECLKegkYbR
