2.4G/5G WiFi Antenna Compatible w/ Raspberry Pi CM4 & CM5
(No reviews yet)
Write a Review
- Brand
- Waveshare
- SKU:
- 1698-1
- Condition:
- New
- Compatibility:
- CM5
- Compatibility:
- CM4

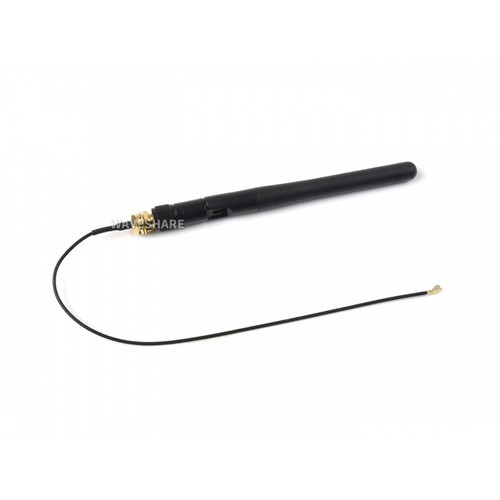

Waveshare 18944 - Compatible Antenna for Raspberry Pi CM4 / CM5, supports 2.4G/5G WiFi frequency band - ORD-CM4-ANTENNA
The Waveshare ORD-CM4 Antenna is designed for Raspberry Pi Compute Module 5 & Compute Module 4 with wireless connectivity. It provides stable signal reception and improved performance for Wi-Fi and Bluetooth applications. Compact and easy to mount, it’s an ideal accessory for Compute Module projects requiring reliable wireless communication.
Specifications
Frequency range
|
2400-2500/5150-5850 MHz
|
Maximum power
|
10 W
|
|---|---|---|---|
Bandwidth
|
100–700 MHz
|
Dimensions
|
109 × 10 mm
|
VSWR
|
≤1.92
|
Connector
|
SMA male central pin
|
Peak Gain
|
2±0.5 dBi
|
Body Material
|
TPEE
|
Output Impedance
|
50 Ω
|
Operating Voltage
|
-20ËšC ~ + 70ËšC
|
Polarisation
|
Vertical
|
Radiation
|
Omnidirectional
|
Outline dimensions
