10.1'' Industrial HMI based on Raspberry Pi CM5, with Wifi & Bluetooth, 4GB RAM, 32GB eMMC

EDATEC - 10.1'' Industrial HMI based on Raspberry Pi CM5, with Wifi & Bluetooth, 4GB RAM, 32GB eMMC, 4G/LTE - ED-HMI3120-101C-10432-4US

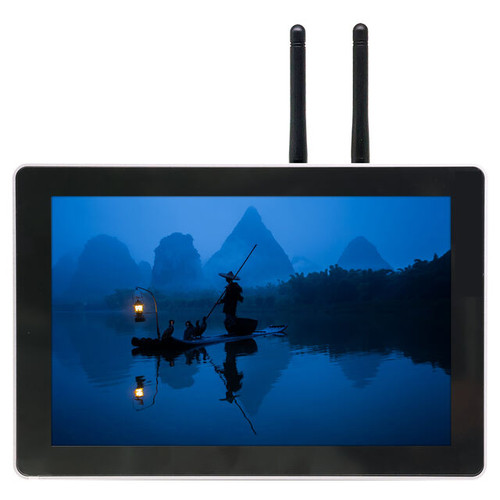

The ED-HMI3120-101C-10432-4US integrates a 10.1″ capacitive touch display with Raspberry Pi CM5. It comes with Wi-Fi and Bluetooth. It features 4 GB RAM, 32 GB eMMC storage, dual Ethernet, RS-232/485 isolation, and wide-range DC power input. A reliable platform for connected industrial control and monitoring.

This variant is built around the Compute Module CM5104032.

Features

• 10.1" TFT, resolution 1280x800, multi-point capacitive touch screen
• Broadcom BCM2712, quad core Cortex-A76 (ARM v8) 64-bit SoC @ 2.4GHz
• 4GB LPDDR4 RAM and 32GB eMMC storage
• Support Micro SD card and M.2 NVMe SSD storage expansion
• Dual LAN, 1 x Gigabit Ethernet and 1 x 100M Ethernet
• 4 x isolated RS232/485 with electrostatic and surge protection
• 2.4GHz & 5GHz dual-band Wi-Fi & Bluetooth
• Wide voltage power input range of DC 9V~36V with reverse polarity protection, overvoltage protection, and overcurrent protection
• Integrated supercapacitor (backup power supply, optional), RTC, Watch Dog, EEPROM, and crypto authentication
• Embedded installation, compatible with VESA standard bracket installation

Specifications

System

• CPU: Broadcom BCM2712, quad-core Cortex-A76 (ARM v8) 64-bit, 2.4 GHz

• VPU: H.265 (HEVC), up to 4Kp60 decode

• GPU: OpenGL ES 3.1, Vulkan 1.2

• Memory: 4 GB LPDDR4-4267 SDRAM

• Storage:

  • 32 GB eMMC

  • MicroSD slot (user expansion)

  • M.2 NVMe SSD (128 GB / 256 GB / 512 GB options)

Side I/O

• Power: DC IN (9–36 V), 2-pin Phoenix terminal

• Audio: 3.5 mm jack (Mic In / Line Out / Headphone auto-switch)

• RS485: 2 ports, isolated, ESD & surge protected

• RS232: 2 ports, isolated, ESD & surge protected

• Ethernet: 1× Gigabit (RJ45), 1× 100 M (RJ45)

• SD Slot: 1× MicroSD

• SIM Slot: 1× Nano SIM (4G)

• Micro USB: for flashing system to eMMC

• HDMI: 1× HDMI 2.0 (4K@60Hz)

• USB 2.0: 2× Type-A (480 Mbps)

• Antenna: 2× SMA (optional for 4G/Wi-Fi/BT)

• Speaker: Built-in 3 W, 4 Ω

Buttons & Indicators

• Reset: 1 button

• LEDs: Power (red), 4G (green), System (green), User (green), 4× UART status (green)

LCD

• Size: 10.1″ TFT

• Resolution: 1280×800

• Colors: 16.7 M

• Active Area: 216.576 × 135.36 mm

• Backlight: LED, >30,000 h MTBF

• Brightness: 400 cd/m²

• Contrast: 1000:1

• Response Time: 30 ms

• Viewing Angle: 80° (L/R/U/D)

Touch Screen

• Type: 10-point capacitive multi-touch

• Transmittance: ≥85%

• Interface: I²C, COF connection

• Driver: Linux

• Surface Hardness: 6H

Internal I/O

• GPIO: 40-pin header (2×20, 2.54 mm), CM5 GPIOs, 3V3, 5V, GND

• M.2 B Key: SSD slot (2230 & 2242 compatible)

Expansion Functions

• EEPROM (4 KB)

• Crypto authentication support

• RTC with SuperCAP backup (optional CR1220 battery)

• Buzzer (alarm function)

• Watchdog (hardware present, software in development)

Electrical

• Input Voltage: 9–36 V DC

• Power Consumption: Max 24 W

Mechanical

• Dimensions: 258 × 172 × 42 mm (W×D×H, without antenna)

• Weight: 1.2 kg

• Installation: Embedded front mount

Wireless

• Wi-Fi: Dual-band 2.4 GHz (802.11 b/g/n), 5 GHz (802.11 a/n/ac)

• Bluetooth: 2402–2480 MHz

• 4G: Not supported

Environmental

• Operating Temp: −20 °C to +60 °C

• Storage Temp: −25 °C to +60 °C

• Humidity: 5–95% non-condensing

Dimension (mm)

Resources

• Datasheet
• User Manual

Includes

• 1 x ED-HMI3120-101C-10432-4US Unit
• 1 x Mounting Kit (including 4 x buckles, 4xM4*10 screws and 4xM4*16 screws)
• 1 x 2.4GHz/5GHz Wi-Fi/BT Antenna
• 1 x 4G/LTE Antenna
