USB to TTL Serial Cable for Raspberry Pi 5 Debugging, FT232RNL Chip
(No reviews yet)
Write a Review
- Brand
- Waveshare
- SKU:
- 848-1

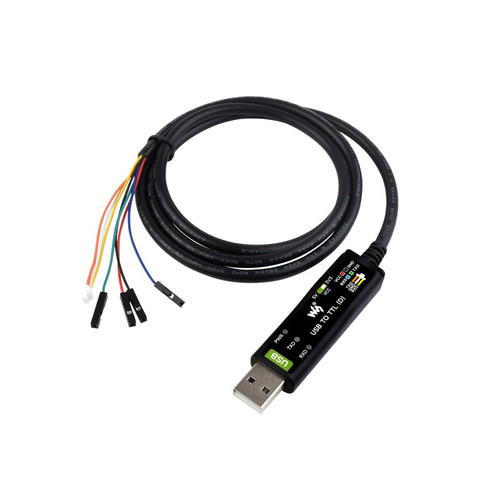

Waveshare 26738 - Industrial USB TO TTL (D) Serial Cable, Original FT232RNL Chip, Multi Protection Circuits, Multi Systems Support, With Separated 4pin Header + SH1.0 3PIN Connector, Suitable For Raspberry Pi 5 Serial Port Debugging
Industrial USB TO TTL serial cable, adopts original FT232RNL chip, onboard power supply and signal indicators, supports 3.3V/5V voltage level switching, built in self-recovery fuse, ESD and IO protection diode circuits, etc. It is compact in size, suitable for serial port debugging of industrial equipments and can be directly connected to the Raspberry Pi 5.
Specifications
| Product category | Industrial USB TO TTL serial cable |
|---|---|
| Chip scheme | FTDI original FT232RNL |
| Host port | USB |
| Data rate | 300bps ~ 3Mbps |
| Device Port | UART |
| USB port | Connector: USB-A |
| Protection: self-recovery fuse, ESD protection | |
| UART port | Connector: separated 4pin female header + SH1.0 3PIN fool-proof connector |
| Protection: IO protection diode | |
| Indicator | PWR: power indicator, turns on when there is USB connection and voltage is detected |
| TXD: TX indicator, turns on while the USB port is sending data | |
| RXD: RX indicator, turns on while the device port is sending data back | |
| Cable | Black, PVC sheath, total length 1m |

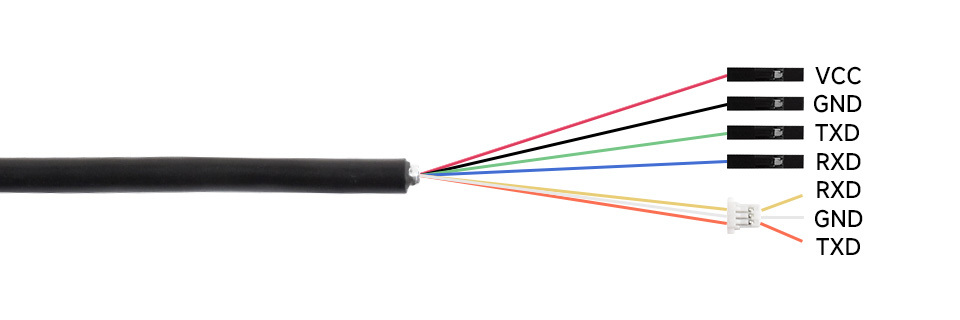

Pinouts Definition
| VCC | 3.3V or 5V output, configured by switch |
|---|---|
| GND | Ground |
| TXD | Connecting to MCU.RXD (signal direction: MCU.RX < < FT232 < < PC.TX) |
| RXD | Connecting to MCU.TXD (signal direction: MCU.TX > > FT232 > > PC.RX) |

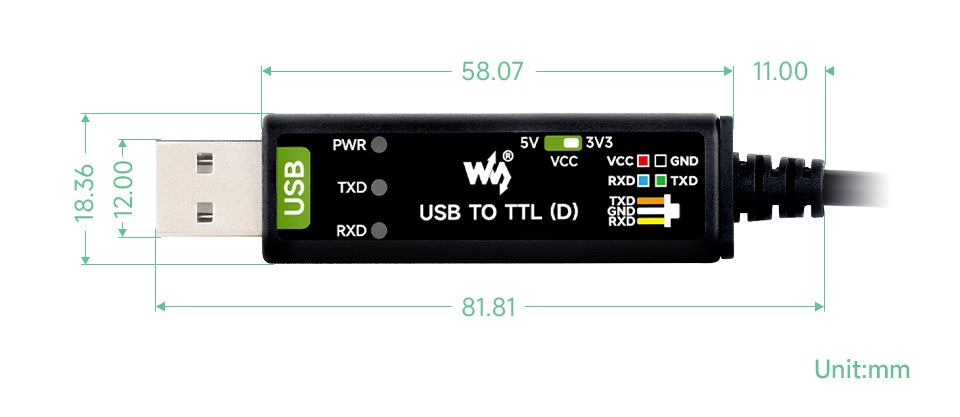

Outline Dimensions
* The above dimensions are measured manually and may have some errors
