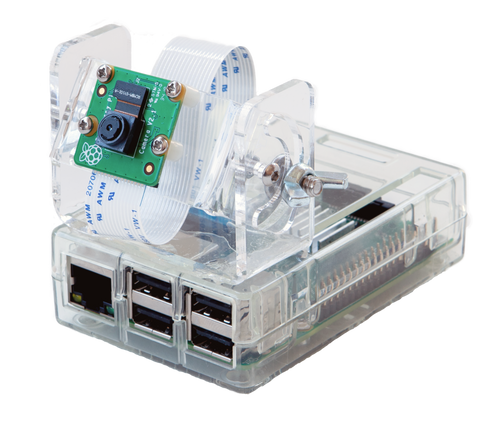

Tilt Adjustable Raspberry Pi Camera Module v2 Mount

The Tilt-Adjustable Camera Module Mount for the Raspberry Pi attaches directly to a Raspberry Pi case for an easy and clean solution to point your camera wherever you want! Compatible with the hole pattern of the Raspberry Pi Camera Module v1 and v2. Does not obstruct any of the port slots in the Raspberry Pi case. Made out of clear acrylic.

Dimensions

• Mounting surface: 1" / 25.4mm x 2.35" / 60mm
• Height: 1.75" / 45mm
• Width with camera module mounted and tilted horizontally: 1.6" / 40mm

What's included

Two acrylic parts, all bolts, nuts, spacers, screws, double stick tape and assembly instructions.
Does NOT include camera module, Raspberry Pi circuit board nor Raspberry Pi enclosure.

Tools required for assembly (not included):

• Small Phillips screwdriver (PH0)
• 2mm Metric Hex Key
• Pliers to hold the nut while tightening

Designed and Manufactured in Northern California.
