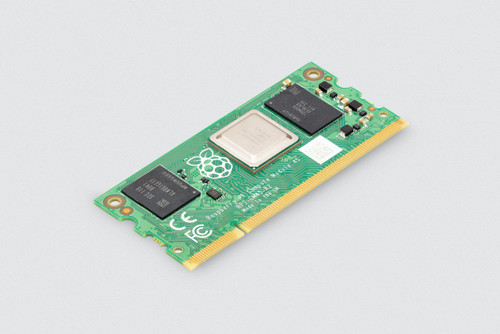

Raspberry Pi Compute Module 4S, 1GB RAM, Lite, CM4S01000

Raspberry Pi Compute Module CM4S, 1GB, Lite - CM4S01000 - SC0762

Based on the Raspberry Pi 4 Model B architecture, Compute Module 4S is intended for specific industrial customers migrating from Compute Module 3 or Compute Module 3+. For new customers who are designing products, we recommend using Raspberry Pi Compute Module 4 or 5.

Specifications

• Broadcom BCM2711 quad-core 64-bit Cortex-A72 (Arm v8) at 1.5GHz
• 1GB LPDDR4-3200 SDRAM with ECC
• 0GB eMMC Flash CM4S Lite
• 1 × USB 2.0 port (high speed)
• 46 × GPIO signals
• 1 × SDIO 2.0 (CM4SLite only)
• 1 × HDMI 2.0 port (up to 4Kp60 supported)
• 1 × 2-lane MIPI DSI display interface
• 1 × 4-lane MIPI DSI display interface
• 1 × 2-lane MIPI CSI camera interface
• 1 × 4-lane MIPI CSI camera interface
• 1 × composite TV out (PAL or NTSC)
• H.265 (HEVC) (up to 4Kp60 decode), H.264 (up to 1080p60 decode, 1080p30 encode)
• OpenGL ES 3.0 graphics

Resources

• Compute Module 4S product brief
• Compute Module 4S datasheet
