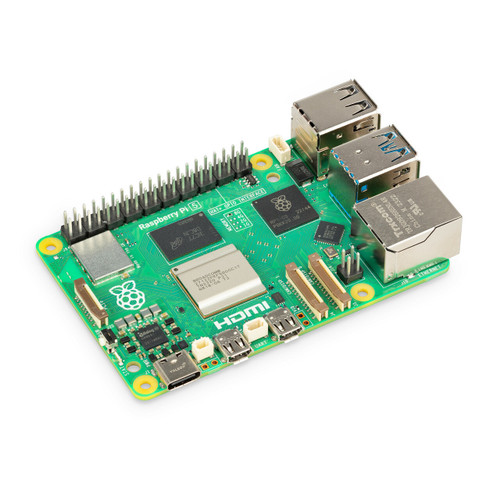

Raspberry Pi 5/1GB

Raspberry Pi 5 1GB - The everything computer. Optimized.

The new Raspberry Pi 5 board features a quad-core 2.4 GHz ARM Cortex-A76 CPU and VideoCore VII GPU, capable of driving dual 4Kp60 displays. It introduces a PCIe 2.0 x1 interface, plus doubled USB and SD card bandwidth, with re-engineered MIPI lanes for faster storage, displays, and cameras.

Powered by the RP1 southbridge, the latest board runs smoothly as both a desktop replacement and an embedded controller. Redesigned camera and display connectors provide higher bandwidth, making this board ready for next-generation projects in AI, automation, and high-resolution media.

Need more RAM?⚡RPi 5 with 16GB is now available.

Key Upgrades

• 2.4GHz quad-core Arm Cortex-A76 — 2–3× the CPU performance of Raspberry Pi 4, for a noticeably smoother desktop, browsing and code compiling

• 1GB LPDDR4X-4267 RAM — ideal for lightweight Linux systems, simple automation, and dedicated single-purpose projects.

• 800MHz VideoCore VII GPU — drives two 4Kp60 HDMI displays with HDR at the same time

• PCIe 2.0 interface — boot from an NVMe SSD with the M.2 HAT+ for faster boot and storage than a microSD card

• RP1 I/O controller — more USB 3.0 bandwidth for external drives and twice the peak microSD speed (SDR104)

• Two 4-lane MIPI connectors — use two cameras, two displays, or one of each

• Built-in power button, real-time clock and UART debug port — no add-on boards needed (the RTC battery is sold separately)

• Built for focused projects and learning — coding, home automation, DIY electronics, lightweight Linux systems and embedded applications.

Specifications

• Broadcom BCM2712 2.4GHz quad-core 64-bit Arm Cortex-A76 CPU, with cryptography extensions, 512KB per-core L2 caches and a 2MB shared L3 cache
• VideoCore VII GPU, supporting OpenGL ES 3.1, Vulkan 1.3
• Dual 4Kp60 HDMI® display output with HDR support
• 4Kp60 HEVC decoder
• LPDDR4X-4267 SDRAM 1GB
• Dual-band 802.11ac Wi-Fi®
• Bluetooth 5.0 / Bluetooth Low Energy (BLE)
• microSD card slot, with support for high-speed SDR104 mode
• 2 × USB 3.0 ports, supporting simultaneous 5Gbps operation
• 2 × USB 2.0 ports
• Gigabit Ethernet, with PoE+ support (requires separate PoE+ HAT)
• 2 × 4-lane MIPI camera/display transceivers
• PCIe 2.0 x1 interface for fast peripherals (requires separate M.2 HAT or other adapter)
• 5V/5A DC power via USB-C, with Power Delivery support
• Raspberry Pi standard 40-pin header
• Real-time clock (RTC), powered from an external battery
• Power button

Resources

• Raspberry Pi 5 product brief
• Raspberry Pi 5 mechanical drawing
• Getting started documentation
• RP1 peripherals documentation

FAQ

Will older versions of Raspberry Pi OS work with Raspberry Pi 5?
No, it requires the latest Raspberry Pi OS. Older releases aren’t supported, so you’ll need to flash a fresh SD card with the current version before booting up.

Will my power supply for Raspberry Pi 4 work with the Pi 5 board?
This board draws more power than the Raspberry Pi 4, and an underpowered supply can cause issues. We recommend a high-quality 5V 5A USB-C power supply.

Does Raspberry Pi 5 need active cooling?
This new Pi is faster and more powerful than prior-generation Raspberry Pis, and like most general-purpose computers, it will perform best with active cooling. The Raspberry Pi Case for Pi 5, with its integrated fan, is one option. For configurations with a HAT, we recommend our HighPi Pro 5S Case with the official Active Cooler.

Raspberry Pi 5 1GB - The everything computer. Optimized.

The new Raspberry Pi 5 board features a quad-core 2.4 GHz ARM Cortex-A76 CPU and VideoCore VII GPU, capable of driving dual 4Kp60 displays. It introduces a PCIe 2.0 x1 interface, plus doubled USB and SD card bandwidth, with re-engineered MIPI lanes for faster storage, displays, and cameras.

Powered by the RP1 southbridge, the latest board runs smoothly as both a desktop replacement and an embedded controller. Redesigned camera and display connectors provide higher bandwidth, making this board ready for next-generation projects in AI, automation, and high-resolution media.

Need more RAM?⚡RPi 5 with 16GB is now available.

Key Upgrades

• 2.4GHz quad-core Arm Cortex-A76 — 2–3× the CPU performance of Raspberry Pi 4, for a noticeably smoother desktop, browsing and code compiling
• 1GB LPDDR4X-4267 RAM — ideal for lightweight Linux systems, simple automation, and dedicated single-purpose projects.
• 800MHz VideoCore VII GPU — drives two 4Kp60 HDMI displays with HDR at the same time
• PCIe 2.0 interface — boot from an NVMe SSD with the M.2 HAT+ for faster boot and storage than a microSD card
• RP1 I/O controller — more USB 3.0 bandwidth for external drives and twice the peak microSD speed (SDR104)
• Two 4-lane MIPI connectors — use two cameras, two displays, or one of each

• Built-in power button, real-time clock and UART debug port — no add-on boards needed (the RTC battery is sold separately)

• Built for focused projects and learning — coding, home automation, DIY electronics, lightweight Linux systems and embedded applications.

Specifications

• Broadcom BCM2712 2.4GHz quad-core 64-bit Arm Cortex-A76 CPU, with cryptography extensions, 512KB per-core L2 caches and a 2MB shared L3 cache
• VideoCore VII GPU, supporting OpenGL ES 3.1, Vulkan 1.3
• Dual 4Kp60 HDMI® display output with HDR support
• 4Kp60 HEVC decoder
• LPDDR4X-4267 SDRAM 1GB
• Dual-band 802.11ac Wi-Fi®
• Bluetooth 5.0 / Bluetooth Low Energy (BLE)
• microSD card slot, with support for high-speed SDR104 mode
• 2 × USB 3.0 ports, supporting simultaneous 5Gbps operation
• 2 × USB 2.0 ports
• Gigabit Ethernet, with PoE+ support (requires separate PoE+ HAT)
• 2 × 4-lane MIPI camera/display transceivers
• PCIe 2.0 x1 interface for fast peripherals (requires separate M.2 HAT or other adapter)
• 5V/5A DC power via USB-C, with Power Delivery support
• Raspberry Pi standard 40-pin header
• Real-time clock (RTC), powered from an external battery
• Power button

Resources

• Raspberry Pi 5 product brief
• Raspberry Pi 5 mechanical drawing
• Getting started documentation
• RP1 peripherals documentation
• Compliance: Raspberry Pi 5 meets a number of regional and international standards — view the certificates and conformity documents
• Product lifetime: Raspberry Pi 5 will remain in production until at least January 2036

Power and cooling

Raspberry Pi 5 draws more power than earlier models, so we recommend a 5V/5A (27W) USB-C PD power supply. For sustained workloads, use the Active Cooler or a case with a fan.

FAQ

Will older versions of Raspberry Pi OS work with Raspberry Pi 5?
No, it requires the latest Raspberry Pi OS. Older releases aren’t supported, so you’ll need to flash a fresh SD card with the current version before booting up.

Will my power supply for Raspberry Pi 4 work with the Pi 5 board?
This board draws more power than the Raspberry Pi 4, and an underpowered supply can cause issues. We recommend a high-quality 5V 5A USB-C power supply.

Does Raspberry Pi 5 need active cooling?
This new Pi is faster and more powerful than prior-generation Raspberry Pis, and like most general-purpose computers, it will perform best with active cooling. The Raspberry Pi Case for Pi 5, with its integrated fan, is one option. For configurations with a HAT, we recommend our HighPi Pro 5S Case with the official Active Cooler.

Will Raspberry Pi 5 fit my Raspberry Pi 4 case?

No. The board layout has changed, so Raspberry Pi 4 cases do not fit. Choose the official Raspberry Pi 5 case or our HighPi Pro 5S case.
