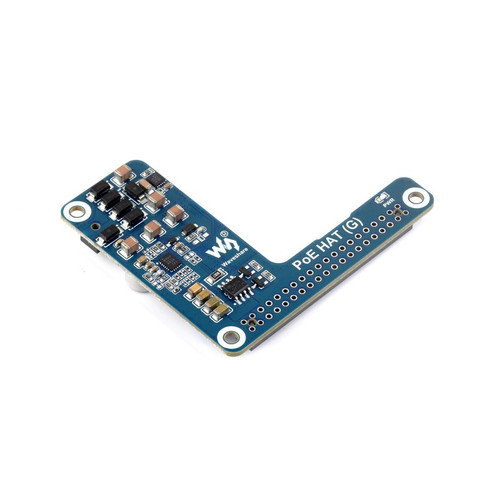

POE HAT (G), Compatible with Raspberry Pi 5 & CM5, 5V 5A Output, 802.3af/at

Waveshare 27670 - Power Over Ethernet HAT (G), works with Raspberry Pi 5 & CM5, 5V 5A Output, 802.3af/at - PoE HAT (G)

The PoE HAT (G) is an IEEE 802.3af/at-compliant POE HAT for Raspberry Pi 5. By using a router or switch that supports the IEEE 802.3af/at network standard, it is possible to provide both network connection and power supply for your Raspberry Pi using a single Ethernet cable.

Compatible with the Raspberry Pi 5 Official Case

Features

• Standard Raspberry Pi 40PIN GPIO header
• PoE capability, IEEE 802.3af/at-compliant
• Onboard original IC solution for more stable PoE power performance
• Adopts a non-isolated switched-mode power supply (SMPS)
• Compact and easy to assemble

Specifications

PoE HAT (G)

PoE power input

38V ~ 57V DC in

Power output

GPIO header: 5V 5A (MAX)

Dimensions

56.5 × 64.98mm

Network standard

IEEE 802.3af/at PoE

Compatible with the official Raspberry Pi 5 case (not included)

Specifications

PoE HAT (G)

PoE power input

38V ~ 57V DC in

Power output

GPIO header: 5V 5A (MAX)

Dimensions

56.5 × 64.98mm

Network standard

IEEE 802.3af/at PoE

Outline dimensions

Resources

WIKI: www.waveshare.com/wiki/PoE_HAT_(G)

Package Content

1. PoE HAT (G) x1
2. Standoffs pack x1
