PCIe To M.2 E KEY Adapter With PoE Function for Raspberry Pi 5, for Wi-Fi NIC Modules
(No reviews yet)
Write a Review
- Brand
- Waveshare
- SKU:
- 3112
- Condition:
- New

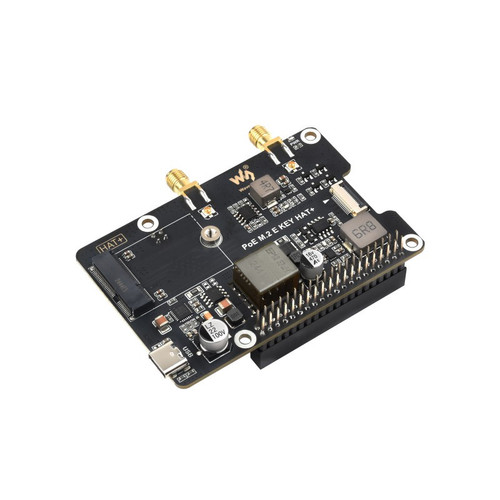

Wavesgare 30276 - PCIe To M.2 E KEY Adapter With PoE Function For Raspberry Pi 5, Compatible With NGFF (M.2 E Key) Wireless NIC - PoE M.2 E KEY HAT+
It is a PCIe to M.2 E key HAT with POE designed for Raspberry Pi 5, compatible with various 2230 size NGFF (M.2 E Key) wireless NICs and supports Gen2 and Gen3 modes.
Features
- Compatible with various 2230 size NGFF (M.2 E Key) wireless NICs
- PCI-E×1 Gen2 or Gen3 mode
- Only supports PI5B
- On-board working indicator, PWR stays on when powered on
Note: The board does not come with any WIFI or AI module, you can purchase it separately if necessary.
Specifications
- PoE input voltage: 37V ~ 57V DC input
- PoE-GPIO pin header: 5V 4.5A (MAX)
- PoE-2P pin header: 12V 2A (MAX)
- Network standards: Supports IEEE 802.3af/at PoE
- Product size: 56.0mm × 85.0mm
Includes
- PoE M.2 E KEY HAT+ x1
- USB Type-C Adapter (E) x1
- IPEX 1 to IPEX 4 adapter cable ~6cm x2
- 16P-Cable-40mm x1
- Screws pack x1

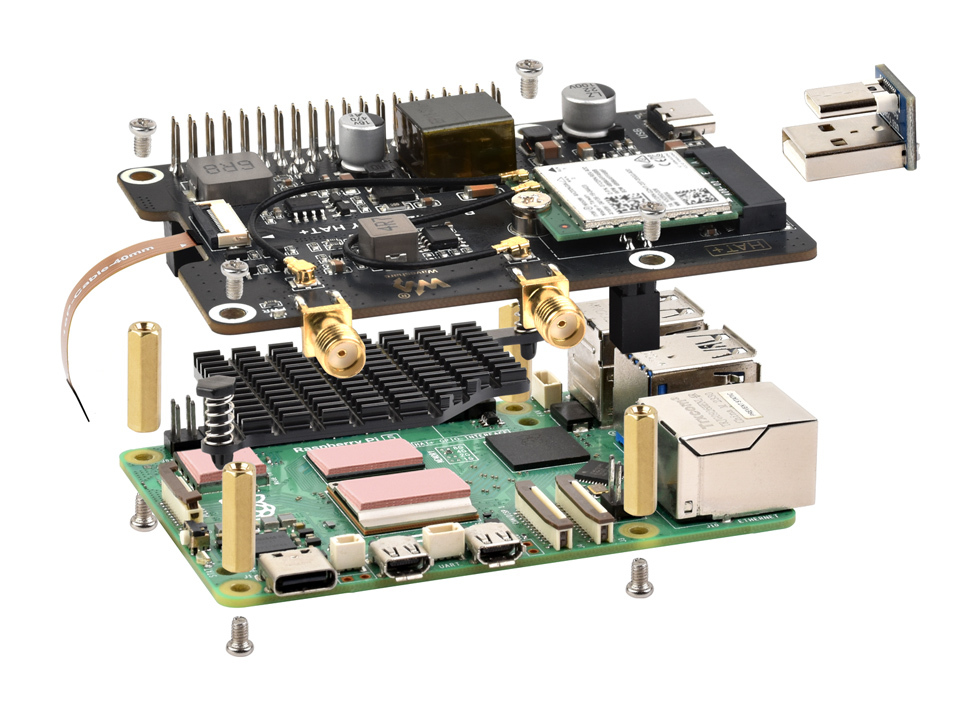

How To Install
Attach The Thermal Tapes First, Then Install The Metal Heatsink And Fix The HAT
* picture is for reference only, please refer to the Package Content for detailed part list

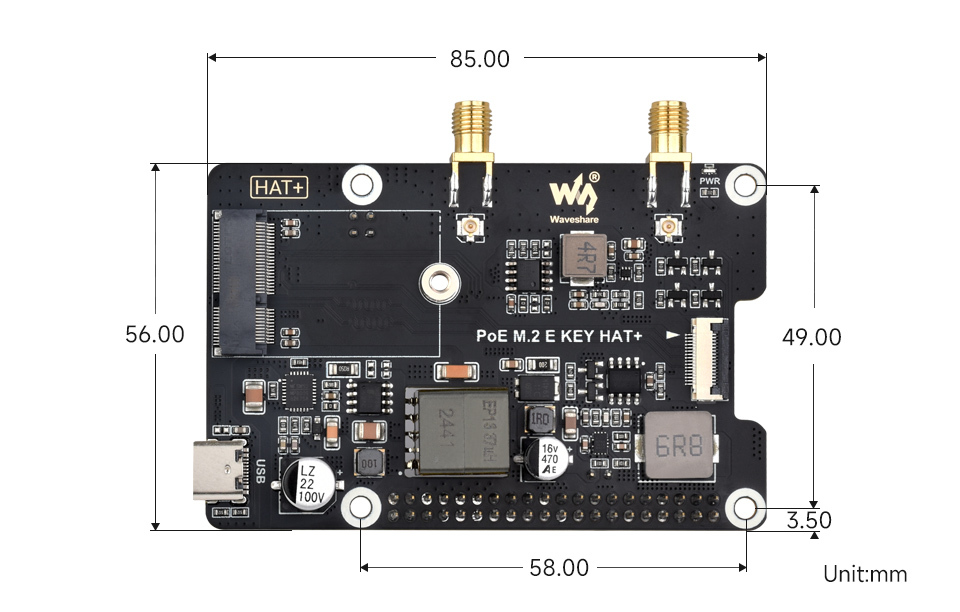

Outline Dimensions
