PCIe To Gigabit ETH USB3.2 HAT+ for Raspberry Pi 5

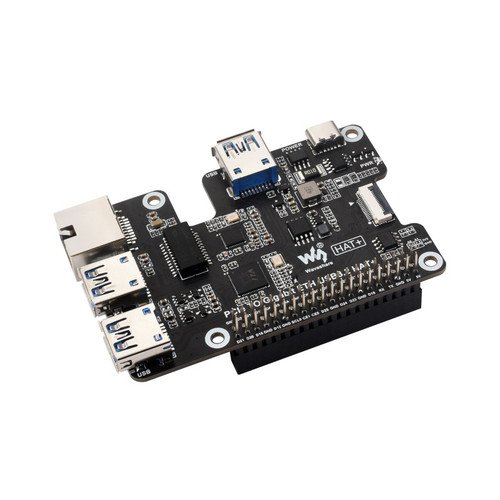

Waveshare 27541 - PCIe To Gigabit Ethernet And USB 3.2 Gen1 HAT For Raspberry Pi 5, 3x USB 3.2 Gen1, 1x Gigabit Ethernet, Driver-Free, Plug And Play, Raspberry Pi 5 PCIe HAT

Designed exclusively for the Raspberry Pi 5, the Waveshare PCIe to Gigabit Ethernet + USB 3.2 HAT Plus unlocks powerful expansion via the new PCIe FFC interface. Add a full-speed Gigabit Ethernet port and dual USB 3.2 Gen1 interfaces. Perfect for connecting high-speed storage, cameras, or peripherals that demand reliable bandwidth.

Features

• Designed for Raspberry Pi 5 - Compatible with the new PCIe interface via FFC cable

• 3x USB 3.2 Gen1 Ports - Add high-speed USB connectivity for external drives, cameras, and peripherals

• 1x Gigabit Ethernet Port - Powered by RTL8153B chip for fast and stable network performance

• Driver-Free, Plug & Play - Works out of the box with Raspberry Pi OS, Ubuntu, OpenWRT, and more

• Software-Controlled USB Power - Enable/disable USB ports and monitor power status in real time



What's On Board

1. VL805
   PCIe to USB 3.2 Gen1 HUB chip
2. RTL8153B
   USB to Gigabit ETH chip
3. INA219
   Power monitoring chip
4. EEPROM
   for saving HAT ID and product information
5. 16PIN PCIe interface
   for connecting to the PCIe interface of Raspberry Pi 5
6. Raspberry Pi GPIO header
   for connecting Raspberry Pi 5
7. Gigabit Ethernet port
   up to 1000Mbps data rate, compatible with 100Mbps
8. USB 3.2 Gen1 expanded ports
   USB1~USB3
9. Power port
   for external Type-C 5V DC power supply
10. PWR LED
    Power indicator

How to install

*** For reference only, the Raspberry Pi 5 and cooling fan are NOT included, please refer to the Package Content for detailed part list.

Outline dimensions

Wiki: www.waveshare.com/wiki/PCIe_TO_Gigabit_ETH_USB3.2_HAT+

Package Content

1. PCIe TO Gigabit ETH USB3.2 HAT+ x1
2. Network cable ~1.5m x1
3. 16P-Cable-40mm x1
4. Standoff pack x1
