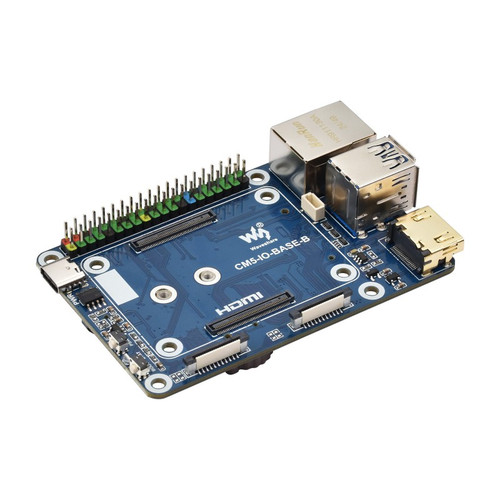

Mini Base Board (B) designed for Raspberry Pi CM5, Onboard EEPROM & Encryption Chip

Waveshare 30703 - Mini Base Board (B) designed for Raspberry Pi Compute Module 5, Onboard EEPROM And Encryption Chip - CM5-IO-BASE-B


The CM5-IO-BASE-B is a base board designed for the Raspberry Pi Compute Module 5, offering a standard CM5 connector, M.2 M-key slot for SSD, DSI and CSI interfaces, and rich peripheral options—ideal for development and integration.

Specifications

CM5 socket

suitable for all variants of Compute Module 5

Networking

Gigabit Ethernet RJ45 connector

Connector

M.2 M KEY (2230 / 2242)

Raspberry Pi 40PIN GPIO header

USB

USB 3.2 Gen1 Type-A × 2, USB 2.0 × 2 (6PIN 1mm FFC connector)

MIPI

4-lane MIPI interface × 2 (22pin 0.5mm FFC connector)

Video

HDMI port × 2 (including one port via FFC connector), supports dual 4K outputs

Storage

TF card slot for Compute Module 5 Lite (without eMMC) variants

Fan header

5V, 4PIN JST-SH PWM connector

Others

Onboard EEPROM and Encryption chip

Power input

DC 5V 5A

Dimensions

85 × 56mm

Compact, yet Complete

Onboard multiple connectors, more convenient to use.

What's On Board

1. CM5 socket
   suitable for all variants of Compute Module 5
2. 40PIN GPIO header
   for connecting various HAT / HAT+ modules
3. Power input/Programming
   5V / 5A power supply, or used for eMMC burning
4. Encryption chip (ATSHA204)
   Supports fast and secure symmetric authentication
5. PSW Power button
   Long press to force power off, short press to soft power off or on
6. STAT LED
   Dual-color status LED
7. BOOT button
   Press before powering on and release after powering on to enter the burning mode
8. Dual MIPI interfaces
   for connecting DSI displays and CSI cameras
9. HDMI0 connector
   HDMI0 port, supports 4K output
10. USB 3.2 Gen1 ports
    2x USB 3.2 Gen1 high-speed ports, supports 5Gbps synchronous operation
11. RJ45 Gigabit Ethernet port
    Supports 10M / 100M / 1000M network access
12. 4PIN JST-SH PWM Fan header
    for connecting cooling fan, 5V power supply
13. TF card slot
    for connecting a TF card with pre-burnt image (Lite variant ONLY)
14. IO-VREF selection
    CM5 IO logic level: 3.3V (default) or 1.8V
15. Other function pins
    WIFI / BT hardware disable or write protection
16. HDMI1 FFC connector
    HDMI1 port, supports 4K output, can be connected through an adapter
17. USB 2.0 FFC connector
    can be connected through an adapter
18. RTC battery holder
    Supports CR / ML1220 button cell
19. M.2 M KEY
    Supports 2230/2242 NVMe Solid State Drives and booting Pi5 from solid state drive
20. I2C selection
    switching I2C0 and I2C1 (by default) for the encryption chip and EEPROM
21. CAT24C32
    EEPROM chip

Outline dimensions

WIKI: www.waveshare.com/wiki/CM5-IO-BASE-B

Package Content

1. CM5-IO-BASE-B x1
2. Screws pack x1
3. SSD mounting screw x1
