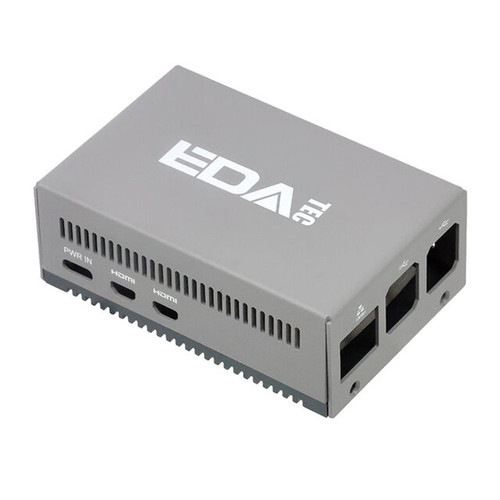

EDATEC - Metal Case supporting Raspberry Pi 5 + HAT - ED-PI5CASE-EXT
Features
- Sheet metal powder spraying + aluminium profile technology, simple design
- Both top and bottom case provide passive cooling for Raspberry Pi 5 though thermal pads & metal body, excellent cooling performance
- Good protection for Raspberry Pi 5, Raspberry Pi Active Cooler and Raspberry Pi M.2 HAT+
- Support installation of Raspberry Pi 5 + Raspberry Pi M.2 HAT+
- Support installation of Raspberry Pi Active Cooler
- HDMI, Ethernet port, USB, SD card, ON/OFF button and PWR/ACT indicator are all accessible
- Reserved camera cable slots and mounting holes for installing the Raspberry Pi Camera on the case
- All-metal casing with an attractive appearance for commercial and industrial scenarios
Specification
| Cooling Performance | ||
| Test Device Configuration | Raspberry Pi 5 + Raspberry Pi AI Kit + Raspberry Pi Active Cooler | Raspberry Pi 5 + Raspberry Pi AI Kit + Raspberry Pi Active Cooler + ED-Pi5Case-EXT |
| Software Configuration |
|
|
| Ambient Temperature | 25℃ | |
| Hailo*1 Module stable operating temperature (℃) |
93.1 | 73.3 |
|
Stable running temperature
of CPU (℃)
|
65.1 | 65.1 |
|
*1: Hailo module is an operation module located on Raspberry Pi AI kit.
Test Results: Under the environment of 25℃, when the device is running in a stable state, ED-Pi5Case-EXT can reduce the temperature of Raspberry Pi AI Kit by about 20℃, and also reduce the temperature fluctuation range of Raspberry Pi 5 CPU.
|
||
| Mechanical Characteristics | ||
| Dimensions | 91mm x 61mm x 33mm | |
| Material | Sheet Metal (Top Cover) + Aluminium Profile (Bottom Cover) | |
Note:
- Raspberry Pi 5, Raspberry Pi Active Cooler, Raspberry Pi M.2 HAT+, Raspberry Pi Camera Module 3 and SD card are not included in the box, the following is intended as an installation illustration only.
- Before you start installing, please remove the White Protective Paper from thermal silicone in the case.
- If the Raspberry Pi AI Kit is installed, please make sure that the thermally conductive silicone in the Top Cover is in full contact with the Hailo IC.
- You can log in to Raspberry Pi website (https://www.raspberrypi.com) to get assembly instructions of Raspberry Pi Active Cooler, Raspberry Pi M.2 HAT+ and Raspberry Pi Camera Module 3

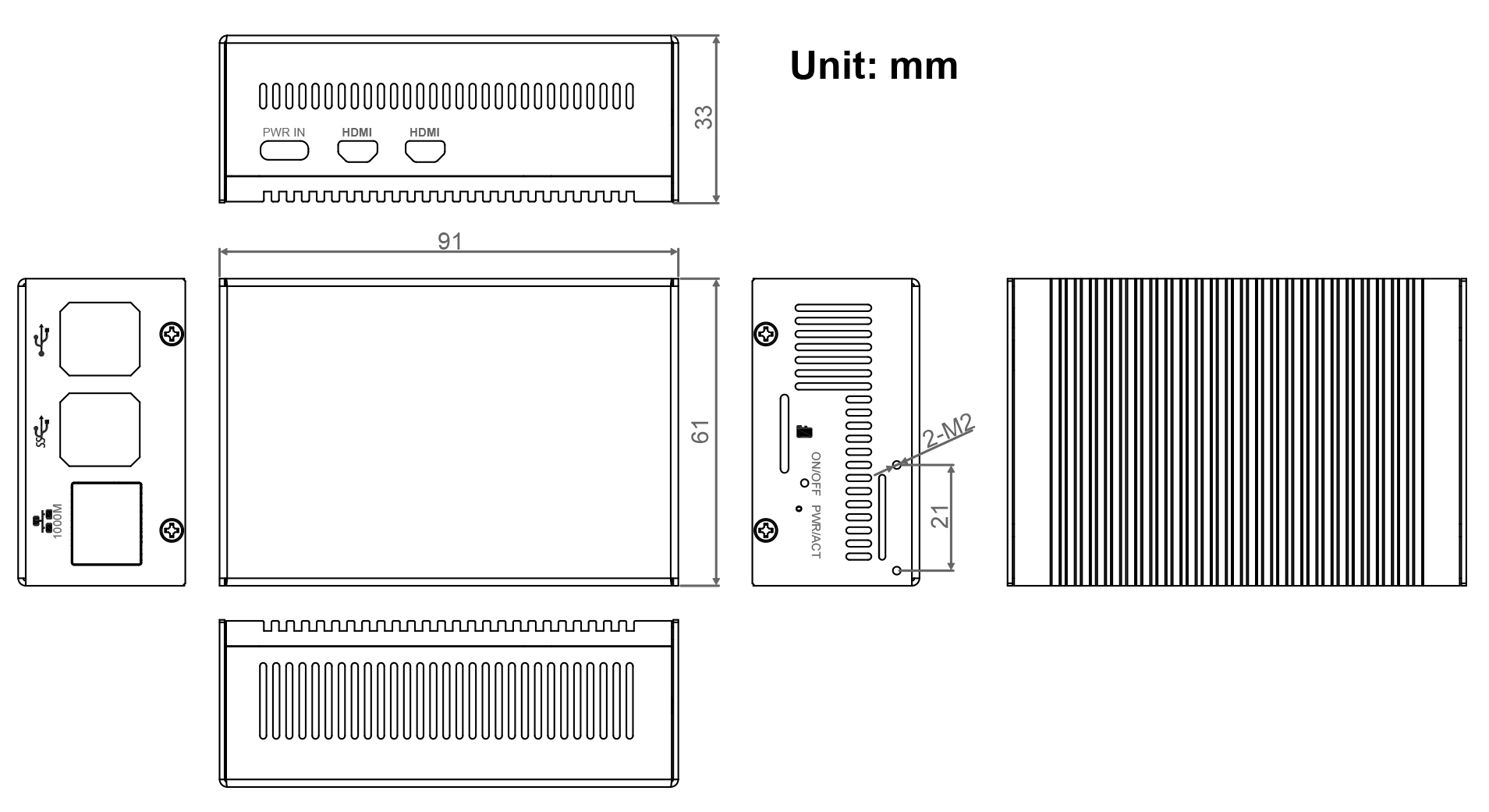

Dimensions
Resources
2 Reviews Hide Reviews Show Reviews
-
Well made, but
it is not quite tall enough for the Waveshare PCIe to M.2 Board (D). That hat extends over the Ethernet and USB ports (to enable 80mm NVME cards) and needs 2mm more clearance than the standoffs provided with this case.
-
