Industrial Grade 2-Ch CAN To Ethernet Server, 2-Ch CAN + RS485 + Ethernet Port, Supports CAN Repeater / CAN To RS485, Dual SOCKET

(No reviews yet) Write a Review

$75.95

Brand: Waveshare
SKU:: 303-1

Description
Show Reviews

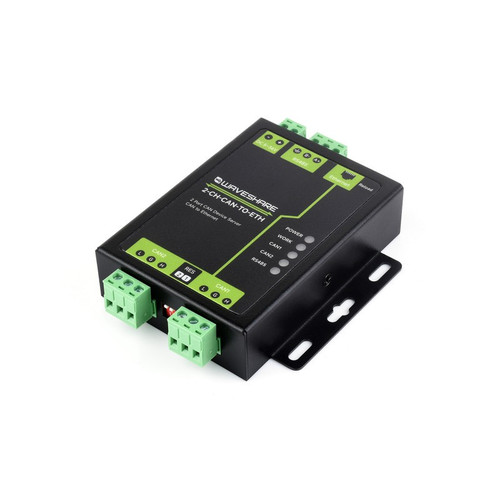

Waveshare 25919 - Industrial Grade 2-Ch CAN To Ethernet Server, 2-Ch CAN + RS485 + Ethernet Port, Supports CAN Repeater / CAN To RS485, Dual SOCKET, Aluminium Alloy Case, Wall-Mount Support - 2-CH-CAN-TO-ETH

Features

The 2-CH-CAN-TO-ETH is a CAN bus to Ethernet port server to realize data communication between CAN device and network server. Built in 2-ch CAN ports, 1-ch Ethernet port and TCP/IP protocol stack, allowing interconnection and communication between CAN-bus and Ethernet for expanding CAN-bus network range. Industrial grade metal case design, supports wall-mount installation, compact in size, easy to install, suitable for applications such as building automation system, industrial automation system, power monitoring, etc.

Specifications

Hardware	Operating voltage	DC 5~36V
	Operating current	26mA (avg) 36V 56mA (avg) 12V 124mA (avg) 5V
	Power protection	Power supply surge level 3, Group pulse level 3
	Ethernet port	RJ45, 10/100Mbps, supports Auto-MDI/MDIX
	Ethernet port protection	1.5KV eletromagnetic isolation
	Serial port	RS485
	Serial port baudrate	600bps~115.2Kbps
	CAN baudrate	10Kbps~1Mbps
	CAN working mode	Basic, Loopback
	CAN protection	Power supply isolation, signal isolation
Software	Network protocol	IPV4, TCP/UDP
	IP acquisition method	Static IP, DHCP
	Configuration method	Webpage configuration, Serial/Network AT command
	TCP server connection	Supports up to 4-ch TCP connection
	CAN receiving capability	8000 frames/s (per channel)
	CAN transmitting capability	8000 frames/s (per channel)
	120Ω resistor	built in (enabled by switch)
	Network cache	transmitting: 16 Kbytes (total) receiving: 16 Kbytes (total)
	CAN cache	transmitting: 200 complete data packets (per channel) receiving: 200 complete data packets (per channel)
	Serial port cache	transmitting: 2Kbyte; receiving: 2Kbyte
	Flow control	None
	Heartbeat packet	Supports user-defined heartbeat packet (CAN data packet that compliants with transparent transmission protocol)
	Registration packet	Supports user-defined, mac, Transparent Transmission Cloud registration packet
	Average transmission delay	<20ms
	Software	Configuration software, VCOM (without auto-search function)
Others	Operating temperature	-40~85°C (industrial grade)
	Storage temperature	-40~105°C
	Operating humidity	5% ~ 95% RH (no condensation)
	Storage humidity	5% ~ 95% RH (no condensation)
	Dimensions	96.5×94.0×25.0mm
