IMX462 2MP IR-CUT Camera, 90° DFOV, Starlight Camera Sensor, Fixed-Focus, for Raspberry Pi
(No reviews yet)
Write a Review
- Brand
- Waveshare
- SKU:
- 410-1
- Condition:
- New

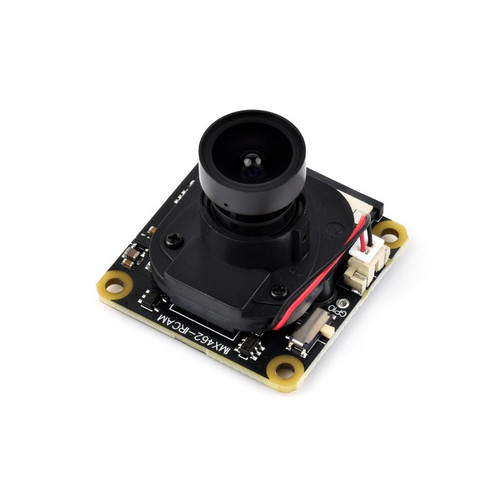

Waveshare 30450 - IMX462 2MP IR-CUT Camera, 90° DFOV, Starlight Camera Sensor, Fixed-Focus, Compatible With Raspberry Pi Boards - IMX462 IR-CUT Camera (A)
The Waveshare IMX462 IR-CUT Camera A is a high-sensitivity USB camera designed for low-light and infrared imaging. Featuring a Sony IMX462 sensor and built-in IR-CUT filter, it delivers exceptional night vision performance. Ideal for AI, machine vision, and surveillance applications.
Features
- Compatible with Raspberry Pi series boards
- Direct Connect To Raspberry Pi Different Variants Including 5 / 4B / 3B+ / 3A+ / 3B / 2B / B+ / A+
- Supports Connecting To Zero / Zero 2 W Series
- 2MP | IR-CUT | 90° DFOV
- Capable of capturing clear images even in low light conditions
- Onboard switch and GPIO pad for switching or GPIO software control of IR-CUT function
- Correct color deviation of infrared camera during the daytime, better imaging effect
- Forks with IR fill light for night vision imaging
- The IR fill light needs to be purchased separately. It is recommended to use an 850nm fill light
Specifications
| Sensor | IMX462 | CMOS size | 1/2.8 inch |
|---|---|---|---|
| PIXELS | 2MP (1920 × 1080) | APERTURE | F2 |
| FOCAL LENGTH | 3.95mm | Diagonal FIELD OF VIEW | 90° |
| CAMERA TYPE | Color | FOCUSING | Fixed focus |
| DISTORTION | < 5% | SHUTTER | Rolling Shutter |
Package Content
- IMX462 IR-CUT Camera (A) x1
Weight: 0.012 kg
Outline Dimensions
