Dedicated All-In-One Aluminum Cooler for Raspberry Pi 5, PWM
(No reviews yet)
Write a Review
| Brand | Waveshare |
| SKU: | 564-2 |
| Condition: | New |
| Compatibility | Pi 5 |

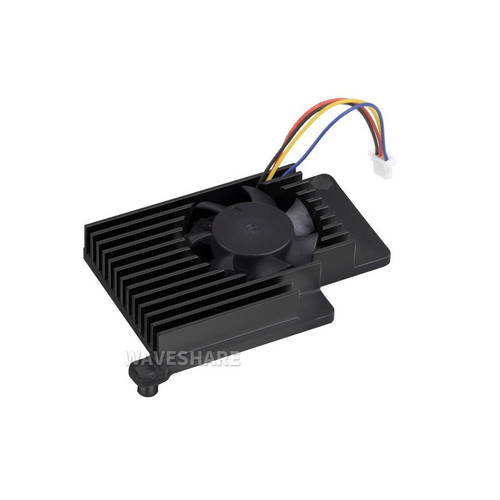

Waveshare Dedicated All-In-One Aluminum Cooler for Raspberry Pi 5, PWM Fan - Pi5-Active-Cooler-A - 26044
The Waveshare Dedicated All-In-One Aluminum Cooler for Raspberry Pi 5 combines an anodized aluminum body with a PWM-controlled fan and tachometer feedback for efficient cooling. Includes thermal pads and nylon screws for easy installation.
Specifications
Input voltage
|
5V DC (supplied via four-pin fan header on Raspberry Pi 5)
|
|---|---|
Fan speed control
|
Pulse width modulation control with tachometer
|
Maximum airflow
|
2.35 CFM
|
Fan speed
|
8000±10%RPM
|
Material
|
Anodised aluminium
|
Includes
- Pi5-Active-Cooler-A x1
- Thermal pads (3PCS) x1
- Nylon screws (2PCS) x1
How To Install
Connect The 4-pin Cable To The Fan Header On Raspberry Pi 5, And Fix The Active Cooler Via M2.5 Nylon Screws
Outline Dimensions
