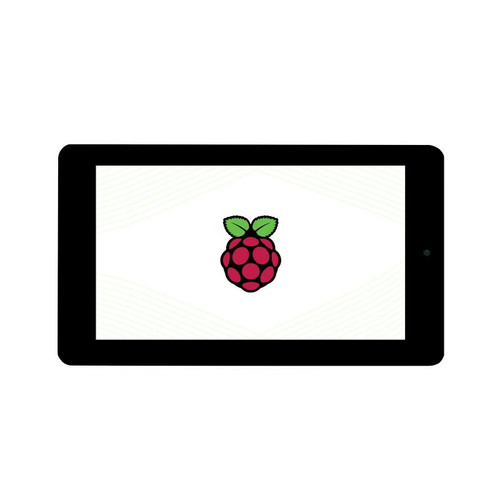

7inch Capacitive Touch Display for Raspberry Pi, with 5MP Front Camera, 800×480, DSI
(No reviews yet)
Write a Review
| Brand | Waveshare |
| SKU: | 533-1 |
| Condition: | New |
Waveshare 20806 - 7inch Capacitive Touch Display For Raspberry Pi, With 5MP Front Camera, 800×480, DSI Interface - 7inch DSI LCD (with cam)
7" DSI touchscreen display with built-in camera for Raspberry Pi. Crisp visuals, plug-and-play DSI connection. Perfect for smart displays, media projects, and Pi-based vision systems.
Device & System Support
Raspberry Pi
- Supports Raspberry Pi OS, 5-points touch, driver free
- Supports Ubuntu, single point touch, driver free
- Supports Pi 4B/3B+/3A+/3B/2B/B+/A+, CM3/3+/4*
* CM3/3+/4 requires extra adapter board
Connection Examples
Working With Raspberry Pi 4
Working With Raspberry Pi 3B+
Specifications
| SENSOR | OV5647 |
| CMOS SIZE | 1/4 inch |
| PIXELS | 5MP |
| APERTURE | F2.4 |
| FOCAL LENGTH | 3.89mm |
| DIAGONAL FOV | 72.9° |
| DISTORTION | < 1.5% |
| DEPTH OF FIELD | 20cm ~ ∞ |
| IMAGE | 2592 × 1944 still image resolution |
| VIDEO | 1920 × 1080p @30, 1280 × 720p @60, 640 × 480p @60, 640 × 480p @90 |
Appearance And Dimensions
Includes
- 7inch DSI LCD x1
- FPC 15PIN 1.0 pitch 50mm (opposite sides) x2
- FPC 15PIN 1.0 pitch 120mm (opposite sides) x1
- 2PIN wire 10cm x1
- Screws pack x1
Resources
- Wiki: 7inch_DSI_LCD_(with_cam)
