48W Power Supply for Build HAT

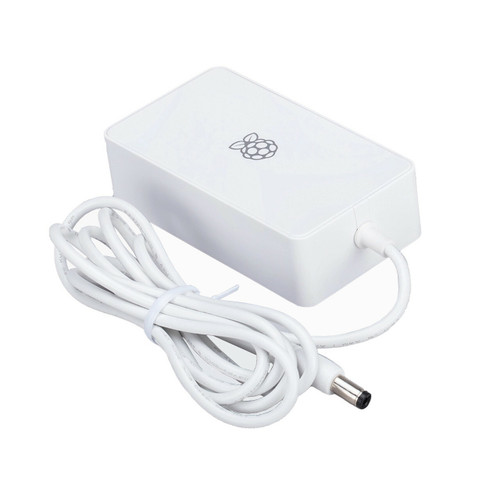

Raspberry Pi 48W Power Supply for Build HAT - White - US

Power your Raspberry Pi Build HAT projects with the Raspberry Pi Build HAT Power Supply. This 48W power supply will power the Build HAT and connected LEGO® TechnicTM motors, as well as your Raspberry Pi computer.
Compatible with LEGO Technic motors and sensors included in the LEGO® Education SPIKETM Portfolio, the Build HAT combines the power of Raspberry Pi computing with easy building opportunities to help you make creative and robust projects.

No separate power supply is required for the Raspberry Pi when using the Build HAT PSU via the Build HAT.

Built HAT Power Supply Features

• Designed specifically for the Raspberry Pi Build HAT
• US/NA Power Supply
• Input: 110-240V AC
• Output: 8V DC, 6A
• Output connector: 5.5mm x 2.1mm x 11mm centre-positive barrel jack
• Cable: 1.5m 16AWG
• Colour: White

Built HAT Power Supply Specification

Input

• Voltage Range
  • 100-240Vac (rated)
  • 96-264Vac (operating)
• Frequency: 50/60Hz ±3Hz
• Current: 50/60Hz ±3Hz
• Power consumption (no load): 0.1W maximum
• Inrush current: No damage shall occur and the input fuse shall not blow

Output

• Output Voltage: +8.0V DC
• Minimum Load Current: 0.01A
• Nominal Load Current: 6A
• Maximum Power: 48W
• Load regulation: ±5%
• Line regulation: ±5%
• Ripple & Noise: 200mVp-p
• Rise time: 100ms maximum to regulation limits for DC outputs
• Turn-on delay: 3000ms maximum at nominal input AC voltage and full load
• Protection:
  • Short circuit
  • Overcurrent
  • Overvoltage
• Efficiency: 87.77% minimum (output current from 100%, 75%, 50%, 25%)
• Output cable: 1.5m 16AWG
• Output connector: Barrel connector, 5.5mm × 2.1mm × 11mm, centre positive

Built HAT Power Supply Physical Specification
