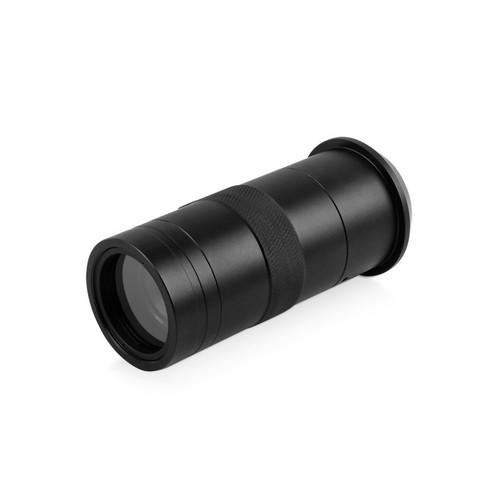

100X Industrial Microscope Lens, C/CS-Mount, Compatible With Raspberry Pi HQ Camera CS
- Brand
- Waveshare
- SKU:
- 734-2
- Condition:
- New
Waveshare 24229 - 100X Industrial Microscope Lens, C/CS-Mount, Compatible With Raspberry Pi HQ Camera CS - 100X Microscope Lens for Pi
This Microscope Lens brings impressive 0.12X to 1.8X optical zoom to your Raspberry Pi High Quality Camera using a reliable C/CS‑mount (adapter included). Crafted from aluminum alloy with a compact design of Φ39 × 112 mm, it allows close‑up imaging with minimal distortion and a wide operating temperature range. Perfect for inspecting small components or scientific exploration—with the caveat that you'll need extra lighting to really see all that detail.
Specifications
| Optical magnification | 0.12X ~ 1.8X | Zoom ratio | 15:01 |
|---|---|---|---|
| Image format | 1/2" | Mount | C/CS (C-CS adapter included) |
| Distortion | < -0.1% | Operating temperature | -20 ~ +80°C |
| Operating distance | 55 ~ 285mm | Object Distance | 2.4 ~ 36mm |
| Outline dimensions | Φ39 × 112mm | lens structure | aluminum alloy + 4 groups 5 elements |
Mounting To The Camera Module
Suitable For Raspberry Pi HQ Camera
Outline Dimensions
1 Review Hide Reviews Show Reviews
-
Microscope objective for Raspberry Pi
For $20 you really can't go wrong with this lens. I tried it with my Global Shutter camera and it worked as advertised. I don't have a ring light or other suitable illumination system, so I can comment on the clarity across the FOV. The workmanship is good, although my lens had zoom mechanism lubricant bleed through on the outside of the housing. This was easily cleaned and doesn't seem to be migrating to the optics. Again, $20 for a four element zoom lens is outrageously good.
